ON Semiconductor LM224N Quad Op-Amp IC DIP-14
Condition

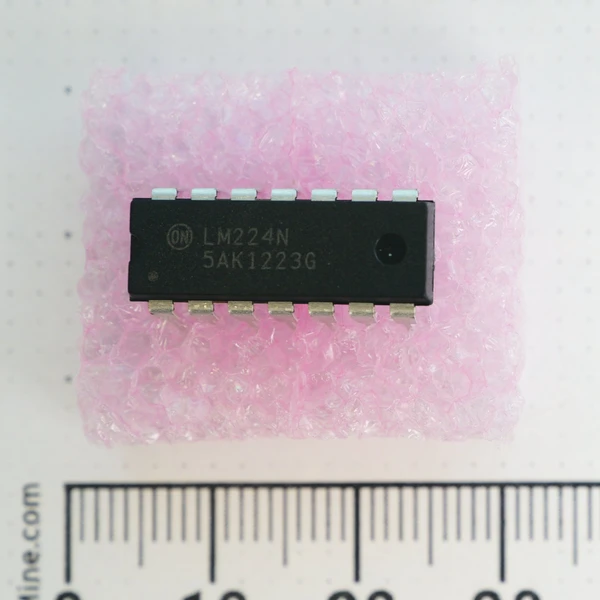

New old stock surplus. Unused inventory in clean condition with straight through-hole leads. Laser marking is sharp and legible: ON Semiconductor logo, LM224N, and trace code 5AK1223G.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The ON Semiconductor LM224N is an industry-standard quad operational amplifier housing four independent, high-gain, internally frequency-compensated op-amps inside a standard 14-pin plastic DIP package. Operating across a wide single-supply span of 3.0 V to 32 V or split rails of ±1.5 V to ±16 V, its common-mode input range includes ground, allowing direct sensing near 0 V without external bias networks.
Key Features
- Quad independent operational amplifier channels in a single DIP-14 package
- Single supply operation from 3.0 V to 32 V or dual split supply from ±1.5 V to ±16 V
- Wide operating ambient temperature range: -25°C to +85°C
- Input common-mode voltage range includes negative supply (ground)
- Internally frequency-compensated with 1.0 MHz to 1.2 MHz gain bandwidth product
- Slew rate of 0.5 V/µs
- Through-hole mounting with standard 0.1-inch lead spacing for breadboards and sockets
- Lead-free construction indicated by G date code suffix
Applications
- Breadboard prototyping and circuit testing where breadboard-friendly through-hole DIP ICs save bench time
- Transducer amplifiers, active filters, and DC gain blocks in industrial automation controls
- Analog synth builds, audio signal mixing, and modular synthesizer patching for makers
- Field service repair of legacy instrumentation and single-supply sensor interfaces
Frequently Asked Questions
Can the LM224N operate from a single 5V or 12V supply?
Yes. The LM224N is designed specifically for single-supply operation down to 3.0 V and up to 32 V, making it well suited for standard 5V logic systems or 12V automotive and bench rails.
What is the difference between the LM224 and the LM324?
The LM224 is specified for an extended industrial temperature range of -25°C to +85°C, compared to the commercial 0°C to +70°C rating of the standard LM324.
Why buy a single genuine ON Semi LM224N here instead of a random import lot?
Buying individually lets you get the exact genuine ON Semiconductor part you need for a repair or prototype without taking chances on unverified multi-packs. Flat-rate shipping is $8, orders over $28 ship free, and parts leave our Idaho warehouse the same or next business day.
