National Semiconductor MM80C98N 3-State CMOS Inverting Buffer IC
Condition

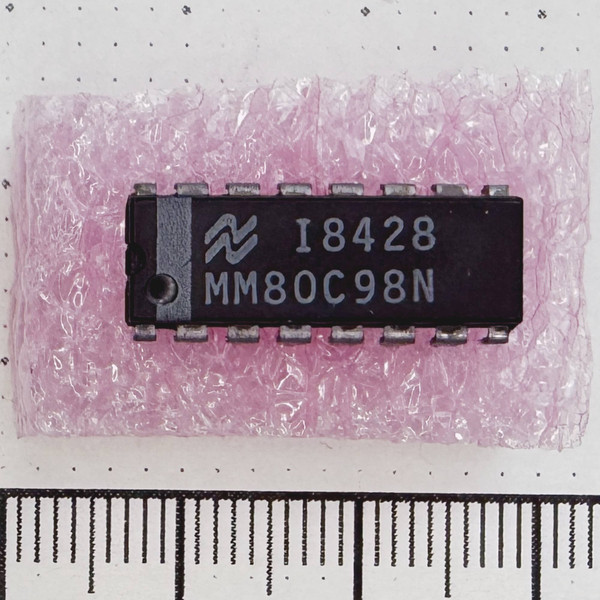

Used equipment pull. Markings are clear and legible: National Semiconductor logo, MM80C98N, and date/lot code I8428. Visual inspection only. Function testing not performed. Verify suitability before use.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The National Semiconductor MM80C98N is a 3-state hex inverting buffer constructed with monolithic CMOS technology. It features split enable controls, allowing either 2-line or 4-line control over high-impedance output states for efficient bus-oriented logic designs. Built in a standard 16-pin through-hole dual in-line package, it operates across a wide supply voltage range from 3.0V to 15V with diode clamp protection on all inputs.
Key Features
- Logic function: 3-State Hex Inverting Buffer
- Logic family: CMOS 80C series
- Operating supply voltage: 3.0 V to 15 V
- Output structure: 3-State push-pull
- Package: 16-pin DIP through-hole mounting
- Input diode clamping to VCC and Ground
- Temperature range: -40°C to +85°C
Applications
- Replacing legacy bus drivers in industrial microcomputer boards and control systems
- Restoring vintage computing and synth electronics requiring original 80C series CMOS logic
- Driving shared digital data lines and display interfaces in maker bench prototypes
Frequently Asked Questions
What is the pin count and package type?
This integrated circuit is housed in a standard 16-pin plastic DIP (through-hole) package.
How are the 3-state output enables controlled?
The six internal inverters are grouped under two separate active-low enable lines (2-line and 4-line) to place outputs into a high-impedance state.
Why buy a single piece instead of chasing a bulk surplus lot?
When you are troubleshooting a specific board failure or repairing a legacy build, you need the exact component shown, not a blind bag of surplus extras. You receive the specific National Semiconductor MM80C98N IC photographed here. Shipping is an $8 flat rate, free once the order passes $28, and orders leave our Idaho warehouse the same or next business day.
Vintage CMOS logic that stepped right out of working hardware, ready to drive the exact signal your legacy bus expects.
