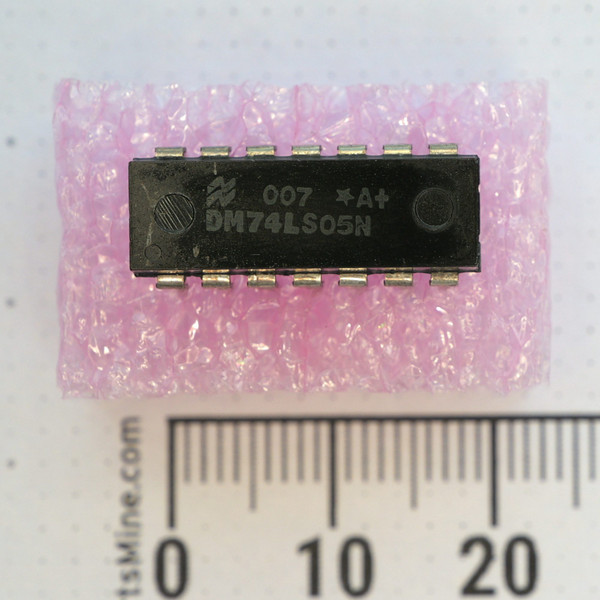

National Semiconductor DM74LS05N Hex Inverter Open-Collector Logic IC DIP-14
Condition
New old stock (NOS). Unused surplus inventory. Lead legs show slight cosmetic tarnishing from age.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The National Semiconductor DM74LS05N contains six independent inverters with open-collector outputs in a through-hole 14-pin dual-in-line package. Built on Low-Power Schottky TTL technology, these gates require external pull-up resistors and are suited for wired-AND configurations, level shifting, and driving higher-voltage indicator circuits.
Key Features
- Six independent inverter gates
- Open-collector outputs for wired-AND logic and bus driving
- Low-Power Schottky (LS) TTL circuitry
- 5.0 V nominal operating voltage (4.75 V to 5.25 V range)
- 8 mA low-level output sink current (IOL)
- Standard 14-pin through-hole DIP package
Applications
- Level shifting between 5V TTL logic and higher voltage circuitry
- Driving indicator lamps, LEDs, and low-current relays
- Servicing legacy digital instrumentation, arcade boards, and retro computers
- Breadboard prototyping and digital logic experiments
Frequently Asked Questions
What is the difference between the 74LS04 and 74LS05?
The standard 74LS04 uses totem-pole outputs that actively drive high and low states. The 74LS05 features open-collector outputs, requiring an external pull-up resistor to establish a logic high voltage.
Why buy individual logic chips here instead of a bulk surplus lot?
Ordering individual pieces lets you source the exact component needed for a repair or build without paying for excess parts. Each unit is individually checked to ensure legible markings and intact leads. Shipping is $8 flat rate, free once the order passes $28, and orders leave the Idaho warehouse the same or next business day.
Open-collector outputs were the workhorse solution that made mixed-voltage boards talk before modern level shifters took over. Keep a couple in your parts bin and you can patch a temperamental digital bus back together in an afternoon.
