Motorola LM311N High Speed Voltage Comparator DIP-8
Condition

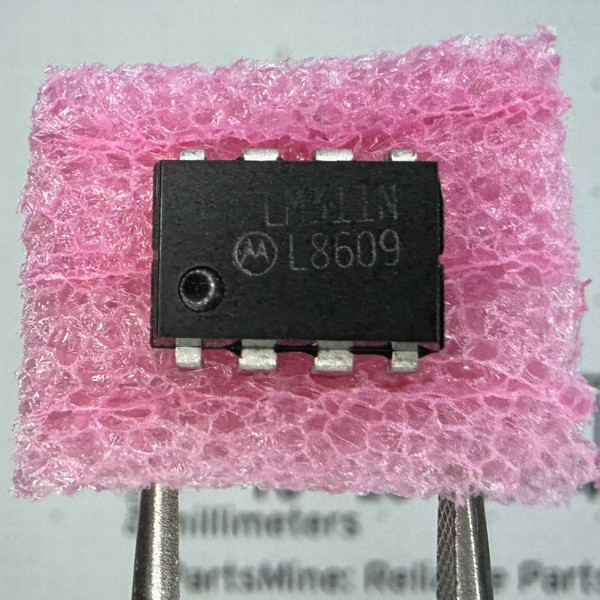

Used equipment pull. Visual inspection completed with intact leads and legible top markings: LM311N, Motorola emblem, and date code L8609.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The Motorola LM311N is a versatile, high-speed single voltage comparator in an 8-pin plastic DIP package. Operating from a single 5V rail or dual supplies up to ±15V, it drives loads referenced to ground or either supply rail with an open-collector output capable of switching up to 50V at 50mA.
Key Features
- Flexible power: operates from single 5.0V to 30V supply or dual supplies up to ±15V
- Open-collector output switches loads up to 50V and 50mA
- Fast 200ns response time with strobe capability
- Directly compatible with TTL, DTL, RTL, and MOS logic levels
- Standard through-hole 8-pin dual in-line package (DIP-8)
Applications
- Drop-in replacement for repairing legacy analog synthesizer circuits, power supplies, or test equipment
- Breadboard prototyping for window detectors, pulse generators, and zero-crossing detectors
- Maker and hobbyist sensor interface circuits driving relays, lamps, or logic inputs directly
Frequently Asked Questions
What supply configurations does the LM311N support?
It operates from either a single DC supply between 5.0V and 30V or split dual supplies up to ±15V.
Can the output directly drive a relay or LED?
Yes, the open-collector output can sink up to 50mA and handle up to 50V, allowing direct drive of small relays, indicators, or level-shifting logic circuits.
Why purchase a single pull rather than a bulk surplus lot?
Buying a single identified and visually checked component avoids surplus pack lot minimums and lets you finish a repair with the exact vintage Motorola silicon you need. Flat-rate shipping is $8, orders over $28 ship free, and everything ships same or next business day from our Idaho warehouse.
An iconic comparator from the golden age of discrete analog design, ready to drop into a socket and pull signals straight.
