Maxim MAX691CPE Microprocessor Supervisor IC DIP-16
Condition

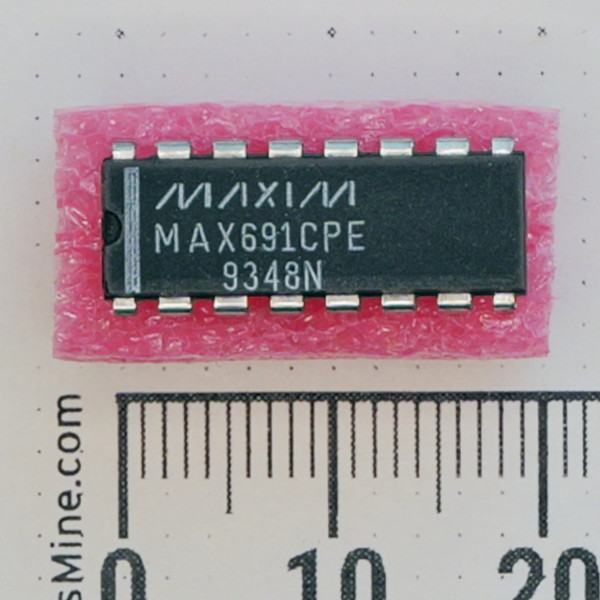

Used equipment pull. Evaluation: Visual inspection only. Function testing not performed. Markings legible: MAXIM MAX691CPE 9348N. Pins intact and clean.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The Maxim MAX691CPE is a dedicated microprocessor supervisory circuit in a 16-pin dual in-line package (DIP-16). It integrates essential power-monitoring and system-protection functions into a single IC, including a 4.65V nominal reset threshold, battery-backup switchover logic, a watchdog timer, and chip-enable gating to protect CMOS RAM during supply transients.
Key Features
- Microprocessor supervisory IC in standard 16-pin plastic DIP
- 4.65V nominal reset threshold voltage
- Operating supply voltage range from 4.75V to 5.5V
- Automatic battery-backup power switching
- Integrated watchdog timer (100 ms, 1.6 s, or external capacitor adjustable)
- Chip-enable gating for SRAM write protection during brownouts
- Commercial operating temperature rating from 0°C to +70°C
Applications
- Replaces failed supervisory ICs on legacy 5V microcontroller boards and industrial controllers
- Provides power-loss protection and non-volatile SRAM backup in vintage computing restorations
- Supplies clean reset signaling and brownout protection for DIY 8-bit and 16-bit microprocessor breadboard builds
Frequently Asked Questions
What is the pin count and package style?
This is a 16-pin dual in-line package (DIP-16) with standard 0.300-inch row spacing, suitable for through-hole PCB mounting or socket insertion.
Has this specific IC been function-tested?
Visual inspection only. This part is a clean equipment pull with intact pins, but electronic bench testing has not been performed.
Why purchase an individual pull rather than a bulk surplus lot?
Getting a single verified part directly solves a repair without forcing you to buy surplus tubes or unknown multi-unit lots. Orders ship at an $8 flat rate, ship free once your order total reaches $28, and depart our Idaho warehouse the same or next business day.
Keeping vintage digital hardware running requires the right supervisor on duty, and this classic 16-pin DIP is ready for your next bench restoration.
