Maxim MAX485 Half-Duplex RS-485/RS-422 Interface IC DIP-8
Condition

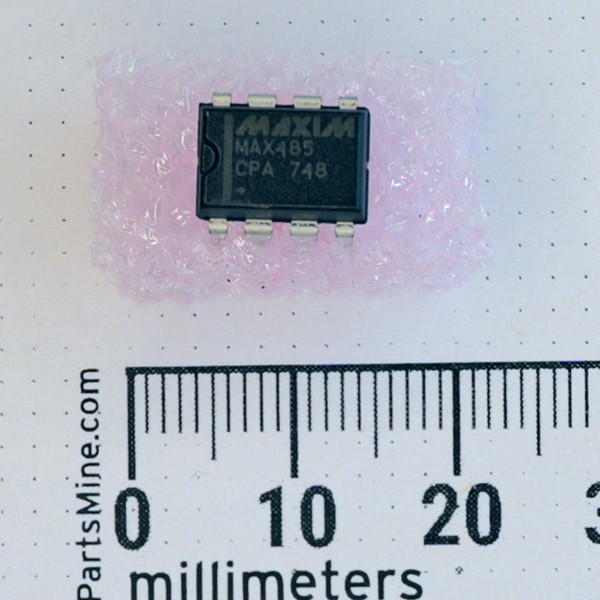

Used. Visual inspection only; function testing not performed. Top surface markings are clearly legible: MAXIM MAX485 CPA 748. Through-hole pins are straight and intact.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Maxim Integrated MAX485CPA half-duplex communication transceiver integrated circuit in an 8-pin plastic dual in-line package (DIP-8). Engineered for balanced multipoint data transmission adhering to RS-485 and RS-422 standards, featuring one differential driver and one differential receiver operating on a single 5V rail.
Key Features
- Communication Standard: RS-485 and RS-422 differential bus
- Configuration: 1 Driver / 1 Receiver (Half-Duplex)
- Data Rate: Up to 2.5 Mbps
- Supply Voltage: 4.75 V to 5.25 V (5 V nominal)
- Operating Temperature Range: 0°C to +70°C
- Package: 8-Pin Plastic DIP (Through-Hole, 0.300-inch row spacing)
Applications
- Replacing failed bus transceivers on industrial PLCs, CNC controllers, and building automation panels.
- Interfacing microcontrollers with long-distance differential serial buses and DMX512 lighting networks.
- Prototyping noise-immune multi-drop sensor networks on breadboards and through-hole PCBs.
Frequently Asked Questions
What is the pin configuration and package style?
This is a standard through-hole 8-pin plastic DIP (PDIP-8) with 0.300-inch lead spacing.
What supply voltage does the MAX485CPA require?
It operates from a single 5V DC power source (4.75V to 5.25V range).
Why buy this MAX485CPA from PartsMine rather than an untested multi-part lot?
You receive the specific, photographed component ready for your repair or build without buying unnecessary surplus volume. Shipping is a flat $8, orders over $28 ship free, and orders leave our Idaho warehouse the same or next business day.
Long serial lines and noisy industrial environments still run on proven differential silicon. Drop this into your socket and get your bus communicating cleanly again.
