Product Overview
Century Spring S-1401 Helical Compression Spring 82 lbs/in Rate
Condition
New old stock. Unused inventory in clean condition with closed and ground flat ends. Sold individually.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

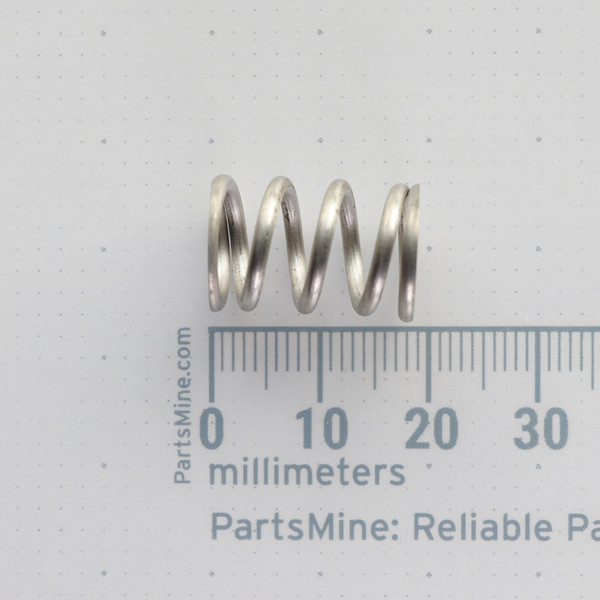

Century Spring part number S-1401 CS (also referenced as S-1401 and S1401CS) is a precision straight helical compression spring constructed from 302/304 stainless steel. Designed for mechanical resistance, return stroke assemblies, and load balancing, it features closed and ground ends for stable, square seating in tooling, machinery, and custom shop projects.
Key Features
- Free length: 0.720 in (18.29 mm)
- Outside diameter: 0.484 in (12.29 mm)
- Inside diameter: 0.360 in (9.14 mm)
- Wire diameter: 0.0625 in (1.59 mm)
- Spring rate: 82.0 lbs/in (14.36 N/mm)
- Suggested maximum load: 16.6 lbf (73.84 N)
- Suggested maximum deflection: 0.202 in (5.13 mm)
- Solid height: 0.319 in (8.10 mm)
- Total coils: 5.1
- Material: 302/304 stainless steel
- End configuration: Closed and ground ends
Applications
- Replacing worn return springs in industrial tooling and mechanical fixtures.
- Setting precise return tension in custom valve, switch, or detent mechanisms.
- Prototyping robotic actuators, clamping jigs, and motion control assemblies.
- Bench repairs and custom fabrication projects requiring corrosion-resistant stainless springs.
Frequently Asked Questions
What is the material composition of this spring?
This spring is manufactured from 302/304 stainless steel, offering high tensile strength and corrosion resistance for industrial, marine, or general workshop environments.
Are the ends of the spring squared and ground?
Yes. The ends are closed and ground flat to ensure even load distribution and square alignment against mating surfaces.
Why buy individual Century Spring pieces instead of bulk factory packs?
Ordering individual pieces lets you source the exact count needed for maintenance, prototyping, or small-batch builds without paying for full minimum-quantity packs. Orders ship for an $8 flat rate, or free once your order reaches $28, leaving our Idaho warehouse the same or next business day.
Nothing fixes a sticky mechanism or finishes a custom build quite like dropping in the exact spring rate on the first try.
