Product Overview
0.047 µF 200 VDC Radial Dipped Polyester Film Capacitor
Condition

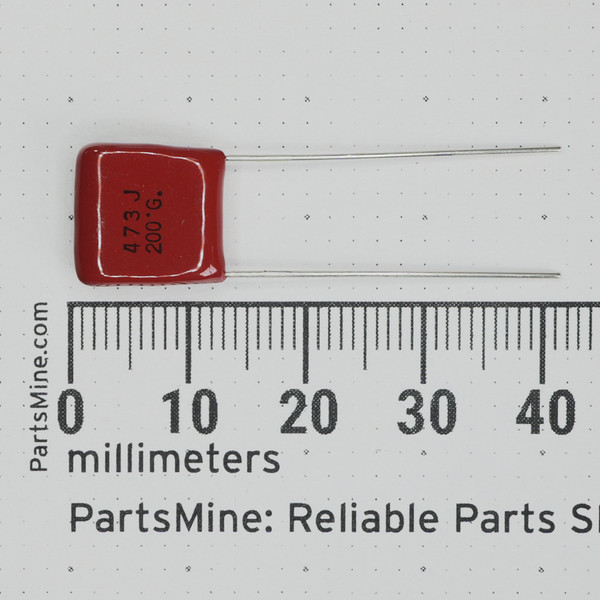

Unused new old stock (NOS). Straight wire leads with clean dipped coating. Markings legible: 473 J, 200. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
A no-hassle satisfaction guarantee on every order.
Product Overview
Designed for through-hole circuit boards, the ECQ-B2473JF polyester film capacitor provides 0.047 µF (47 nF) capacitance rated at 200 VDC. Its dipped epoxy outer case and radial lead geometry suit compact analog filtering, tone networks, and power supply bypass stages.
Key Features
- Capacitance: 0.047 µF (47 nF / 47,000 pF)
- Voltage rating: 200 VDC
- Tolerance: ±5% (J rating)
- Dielectric material: Polyester film (PET)
- Package type: Radial leaded dipped epoxy
- Lead spacing: 7.5 mm center-to-center
Applications
- Tone control and bypass filtering in vintage audio amplifiers and effects pedals
- Snubber and noise suppression networks in low-power DC equipment
- Analog synth frequency shaping and timing stages on protoboards
Frequently Asked Questions
What is the pin spacing for PCB layout?
The leads are set on a 7.5 mm center-to-center pitch for standard through-hole circuit board mounting.
What do the markings stamped on the capacitor face indicate?
The top line reads 473 J, which signifies 47,000 pF (0.047 µF) with a ±5% tolerance. The bottom line confirms the 200 VDC maximum operating voltage.
Does this film capacitor require a specific orientation during soldering?
No, polyester film capacitors are non-polarized components and function identically in either orientation.
A dipped polyester cap never asks for attention - it just sits on the board and keeps the signal clean. Drop it into your filter stage and let the circuit do its job.
