Product Overview
Panasonic ECQ-B 12nF 200 VDC Dipped Radial Film Capacitors
Condition

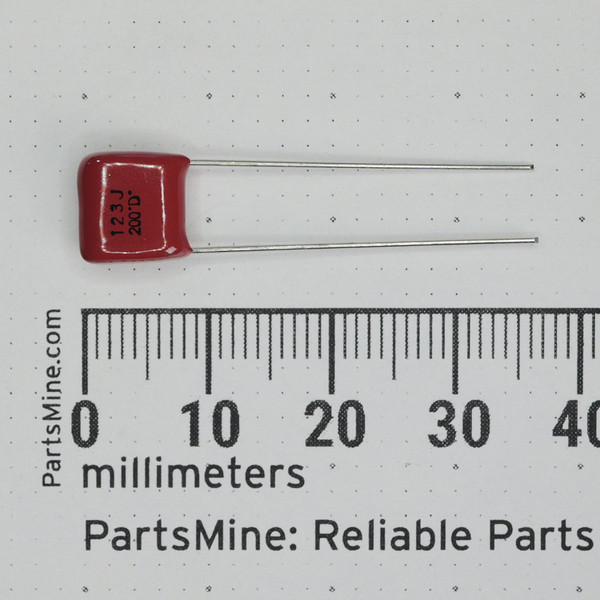

Unused new old stock (NOS). Clean, untrimmed radial leads with intact dipped epoxy resin coating. Markings legible: 123J 200. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Panasonic ECQ-B2123JF provides 0.012 µF (12 nF) capacitance at 200 VDC with ±5% tolerance. Built with a dipped epoxy resin protective coating and straight radial wire leads spaced at 7.5 mm, it is designed for through-hole circuit assembly.
Key Features
- Capacitance: 0.012 µF (12 nF / 12,000 pF)
- Voltage rating: 200 VDC
- Tolerance: ±5% (J rating)
- Dielectric: Polyester film
- Lead spacing: 7.5 mm center-to-center pitch
- Mounting: Through-hole radial leads
- Encapsulation: Dipped epoxy resin
Applications
- Analog tone controls, guitar amplifier tone stacks, and synthesizer filtering networks.
- Snubber protection circuits, pulse handling, and power supply bypass filtering.
- Through-hole board repair, legacy audio equipment restoration, and bench prototyping.
Frequently Asked Questions
Is this capacitor polarized?
No. Polyester film capacitors are non-polarized components and can be installed in either orientation in a circuit within their rated limits.
What is the lead spacing for circuit board layout?
The lead spacing is 7.5 mm center-to-center, suited for through-hole printed circuit board footprints.
A steady 12 nF film capacitor never asks for attention; it just sits in the filter circuit and holds the line. Ready to drop straight into the board and get an analog circuit singing again.
