Product Overview
FPE Size 1 4-Pole 27 Amp Motor Starter Contactor DC Coil CU14S-62
Condition
Unused new old stock (NOS). Unit exhibits clean metal plating, intact terminal hardware, and legible factory nameplates. Evaluation: Visual inspection only. Function testing not performed. Markings legible: FPE MOD C Size 1 Amps 27 Cat. 4102 DC COIL Style CU14S-62 223P215H01, SWGR stamped on mounting plate.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

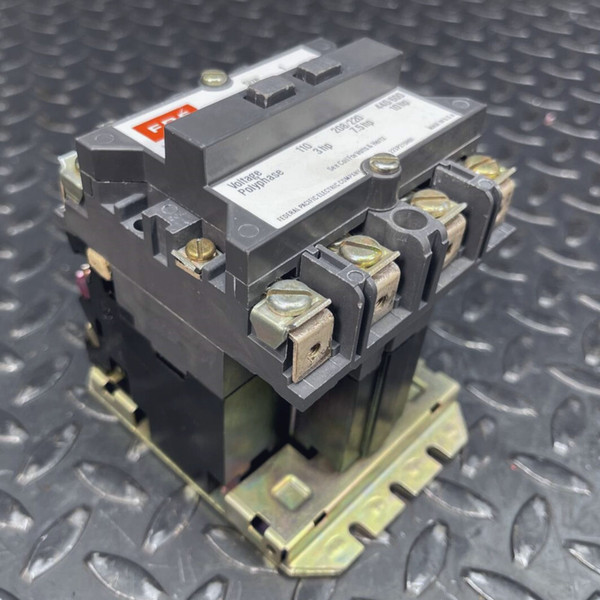

Federal Pacific Electric CU14S-62 is a NEMA Size 1, 4-pole open-type magnetic contactor from the FPE Cat. 4102 series. Rated for 27 amperes continuous operation, it is configured with a direct-current (DC) operating coil and includes a factory side-mounted auxiliary contact block (model L-56) providing SPDT signaling circuits. The zinc-dichromate plated steel baseplate features keyhole slots stamped SWGR for switchgear and industrial control cabinet mounting.
Key Features
- NEMA Size 1 continuous current rating of 27 Amps
- 4 main power poles with heavy-duty screw pressure clamp terminals
- Equipped with FPE Cat. 4102 direct-current (DC) operating coil
- Polyphase motor ratings: 3 HP at 110 V, 7.5 HP at 208/220 V, 10 HP at 440/600 V
- Side-mounted L-56 auxiliary switch with common, normally open, and normally closed screw terminals
- Heavy gauge steel mounting plate with slotted mounting pattern
Applications
- Replacing damaged or worn contactors in vintage Federal Pacific motor control centers and switchgear lineups.
- Retrofitting DC control voltage circuits in industrial process panels without changing the original mounting footprint.
- Custom shop automation and heavy machinery builds requiring a durable 4-pole contactor with DC coil actuation.
Frequently Asked Questions
Does this contactor operate on AC or DC control voltage?
The nameplate specifies Cat. 4102 DC COIL. It is built specifically for DC control circuit applications.
What terminals are provided on the auxiliary contact block?
The side-mounted L-56 auxiliary contact block provides three terminal points marked C (Common), N-O (Normally Open), and N-C (Normally Closed).
Are mounting hardware or documentation included?
Not included. This listing is for the contactor assembly as shown.
What enclosure or equipment does this baseplate match?
The baseplate is factory-stamped SWGR and features standard FPE industrial keyhole slots designed to drop directly into compatible Federal Pacific switchgear and starter enclosures without drilling additional mounting holes.
Built when switchgear iron was thick and contact blocks were serviceable by hand, this FPE contactor drops right into place to keep a legacy motor running.
