Product Overview
47pF 50V Radial Ceramic Disc Capacitor for Bypass, Coupling, and Guitar Tone Circuits
Condition

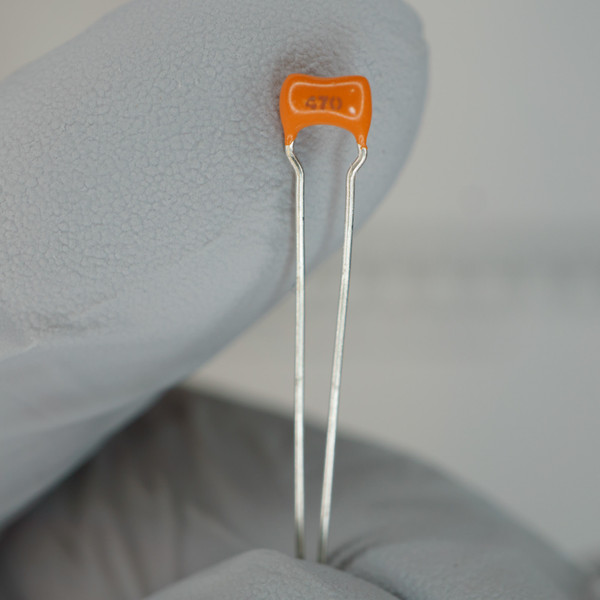

Unused NOS, sourced from an electronics distributor consolidating inventory. Orange ceramic disc body is intact with no chips, cracks, or coating damage. Both radial leads are straight, clean, and show no signs of having been soldered. Markings K②5 470 are clearly legible.
Ships same business day from Idaho. Packed carefully.
Backed by our guarantee.
Product Overview
Sprague/Vishay K25-470 ceramic disc capacitor. 47 picofarads, 50V rating, ±10% tolerance (K code). Through-hole mount with radial leads. Non-polarized passive component. Sprague Electric was acquired by Vishay in 1992 - any Sprague-marked stock is New Old Stock by definition. Orange disc body approximately 4mm wide with silver leads extending roughly 42mm total.
Key Features
- Capacitance: 47 pF (code 470)
- Voltage rating: 50V (code 5)
- Tolerance: ±10% (code K)
- Mounting: Through-hole, radial leads
- Non-polarized - no orientation requirement
- Dielectric type: Not confirmed - verify against datasheet before use in temperature-critical or low-loss applications
Applications
- High-frequency bypass and decoupling
- Signal coupling in audio and RF circuits
- Guitar tone and pedal circuits
- Oscillator and timing circuits
- Vintage electronics restoration and repair
- General PCB repair and prototyping
Frequently Asked Questions
Is this capacitor polarized?
No. Ceramic disc capacitors are non-polarized. Install in either orientation.
What is the dielectric type - C0G, X7R, Y5V?
Not confirmed for this specific part number. Verify against datasheet before use in applications where temperature stability or low dielectric loss at high frequencies is critical.
Will the leads fit standard PCB through-hole spacing?
The leads measure approximately 42mm total length and the body is approximately 4mm wide, consistent with standard ceramic disc capacitor form factor. Trim leads to match your board spacing as needed.
Is a datasheet or documentation included?
Not included.
Sprague ceramic discs have been showing up in repairs since the transistor radio era. This one never made it into a circuit - now it is waiting for yours.
