1500pF 1000V Ceramic Disc Capacitor - Through-Hole, Non-Polarized, High-Frequency Filtering
Condition

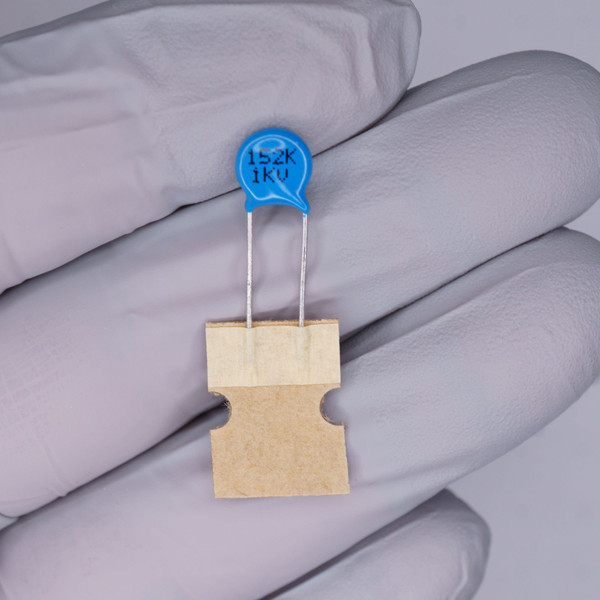

Unused NOS. Blue disc body marked "152K" and "1KV" with straight silver radial leads, stored on a cardboard lead-forming carrier. Sourced from an electronics distributor consolidating inventory. Evaluation: Visual inspection only. Function testing not performed.
Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
152K-1KV is a blue ceramic disc capacitor rated 1500pF (1.5nF) at 1000V with ±10% tolerance. Through-hole, radial leads, non-polarized. Body diameter approximately 8mm with leads approximately 25mm long per photo observation. Built for high-voltage sections of power supplies, filtering stages, and snubber circuits where a compact, non-polarized, high-frequency-capable component is required.
Key Features
- Capacitance: 1500pF (1.5nF / 0.0015µF)
- Voltage rating: 1000V (1KV)
- Tolerance: ±10% (K designation)
- Dielectric: Class 2 ceramic (Y5P)
- Package: Through-hole disc, radial leads
- Non-polarized - no orientation requirement
- Blue disc body with black ink markings; straight silver leads on cardboard carrier
Applications
- Replacing a failed high-voltage cap in the filter or snubber stage of a power supply - desolder the old disc, drop this in, reflow, and verify output stability
- Swapping a failed bypass capacitor in the high-voltage section of older CRT monitor or TV equipment where a 1KV-rated disc is the correct replacement
- Maintaining motor drives or welding equipment with high-frequency control circuits that depend on a reliable 1500pF 1KV disc in the snubber network
- Prototyping a custom high-voltage power supply or LED driver where a through-hole 1KV ceramic disc fits the PCB footprint and keeps the BOM simple
- Stocking a repair bench with high-voltage ceramic discs for general-purpose substitution across multiple equipment types
Frequently Asked Questions
Is this capacitor polarized?
No. Ceramic disc capacitors are non-polarized. This one can be installed in either lead orientation without affecting performance.
What does the "K" in 152K mean?
"K" indicates ±10% capacitance tolerance. The "152" is the capacitance code: 15 followed by two zeros, giving 1500pF.
Is this suitable for precision timing or resonant circuits?
Not the best choice for those applications. As a Class 2 (Y5P) ceramic, capacitance shifts with temperature and applied voltage - a characteristic of this dielectric class. For stable timing or resonant circuits, a Class 1 (NP0/C0G) capacitor is a better fit. For filtering, bypassing, and snubber use, the Y5P performs well.
Does this fit standard through-hole PCBs?
Yes. Radial through-hole leads on a cardboard carrier. Photos show leads approximately 25mm long and a disc body approximately 8mm in diameter. Verify your PCB hole spacing before ordering if a tight footprint fit is critical.
A 1500pF ceramic disc that has been sitting quietly on a carrier strip, waiting for the circuit that needs exactly this. Find the right footprint, solder it in, and it gets back to the job it was made for.
