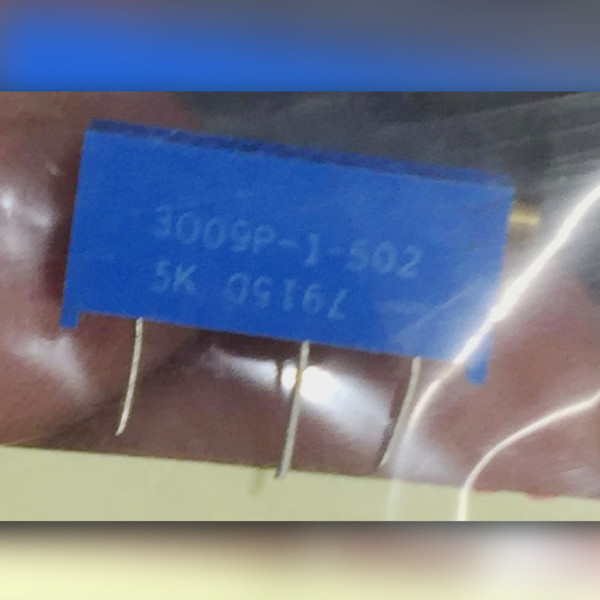

Bourns 3009P 5K Ohm Multiturn Trim Pot, End Screw, Horizontal Adjust
Condition
Condition: unused, new old stock (NOS). Markings legible: 3009P-1-502, 5K. Sold each.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. A no-hassle satisfaction guarantee on every order.
Product Overview
Bourns 3009P-1-502 is a 5K ohm member of the 3009 series: a 3/4 inch rectangular, sealed, multiturn cermet trimmer with its gold-colored adjust screw on the end of the body, turned horizontally from the side. It fits where a calibration point has to be reached from the edge of a board rather than from above.
Key Features
- Resistance: 5K ohm (code 502), printed "5K" on the body
- Tolerance: 10%
- Adjustment: 15 turns, side slot, horizontal; wiper idles at the ends of travel
- Power: 0.75 W at 70 C; 400 V max
- Temperature coefficient: 100 ppm/C; operating range -55 C to +125 C
- Three pins; adjustment torque 5.0 oz-in max
Frequently Asked Questions
What happens if I keep turning past the end?
The wiper idles at each end of travel, so an extra turn past the end does not move the setting. Adjustment torque is rated 5.0 oz-in max.
Is this the lead-free 3009P-1-502LF?
No. The body reads 3009P-1-502, with no LF on the end.
An end-mounted screw means the 3009 can be tuned from the edge of a crowded board, with no reaching over the tall parts. Find the access point, bring a small screwdriver, and walk the 5K in over fifteen turns.
