Product Overview
12 nF 50 V X7R Multilayer Ceramic Chip Capacitor, 1206 Case
Condition
Unused new old stock (NOS). Sold each. No value code or part number appears on the chip itself.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Satisfaction guaranteed, every time.
Product Overview
Inside a 1206 outline no more than 0.65 mm thick, Panasonic's ECU-V1H123KBM holds 12000 pF of X7R multilayer ceramic, rated 50 V DC at +/-10 % tolerance, for surface mounting.
Key Features
- Capacitance: 12000 pF (12 nF, 0.012 uF)
- Rated voltage: 50 V DC
- Tolerance: +/-10 %
- Dielectric: X7R, the EIA class II code for -55 to +125 C with capacitance held within +/-15 %
- Case: 1206, body 3.2 x 1.6 mm, 0.65 mm maximum thickness

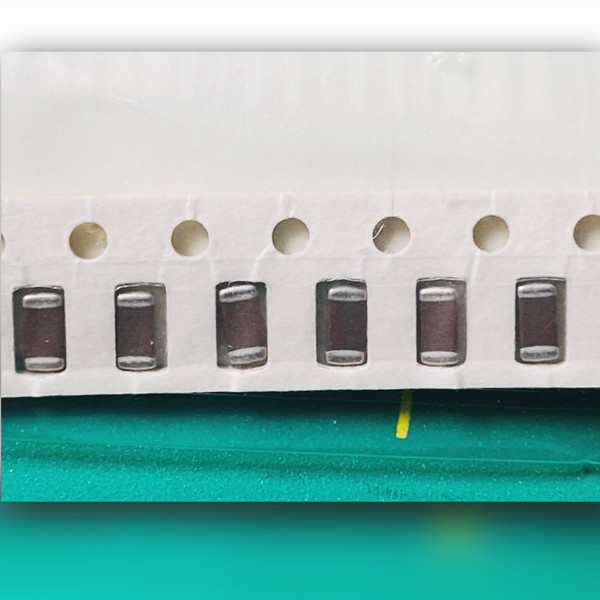

- Body: brown ceramic with silver-grey end terminations on both short ends
Frequently Asked Questions
My schematic calls for 0.012 uF. Is this the right value?
Yes. 0.012 uF, 12 nF and 12000 pF are the same value, and the 123 in the part number writes it as 12 followed by three zeros, in picofarads.
However the drawing writes it, 12000 pF, 12 nF or 0.012 uF, this is one of the in-between steps of the E12 preferred series, the one the coarser E6 series skips on its way from 10 to 15. A 10 or a 15 from the next drawer is a compromise here; this one is the match.
