5600 pF X7R 50 V Surface Mount Chip Capacitor, 1206 Case, 10 % Tolerance
Condition

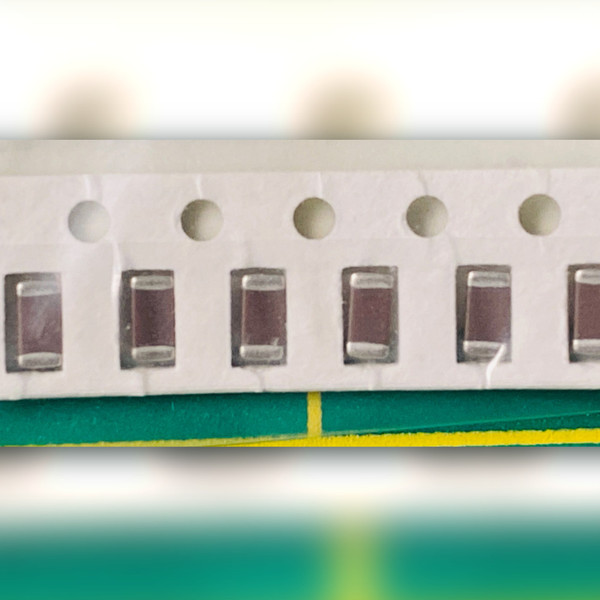

Unused new old stock (NOS). Sold each. These chips carry no printed value; the ordering code ECUV1H562KBM identifies the part.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Here for our customers, with a satisfaction guarantee that means what it says.
Product Overview
ECUV1H562KBM carries 5600 pF (5.6 nF) on X7R multilayer ceramic in Panasonic's 1206 chip, rated 50 V DC at +/-10 % tolerance. The thin body tops out at 0.65 mm.
Key Features
- Capacitance: 5600 pF (5.6 nF, 0.0056 uF)
- Rated voltage: 50 V DC
- Tolerance: +/-10 %
- Dielectric: X7R
- Case: 1206, body 3.2 x 1.6 mm, 0.65 mm maximum thickness
- Multilayer ceramic, surface mount, non-polarized
Applications
- Bypass and decoupling at an IC supply pin on a 1206 pad
- General RC and EMI filtering where a 10 % value spread is acceptable
- Restocking a repair drawer for boards built with 1206 X7R parts
Frequently Asked Questions
Does it matter which way the chip faces on the pad?
No. A multilayer ceramic capacitor is non-polarized, so either end can go on either pad.
Is 10 % tolerance tight enough for a filter corner?
The published tolerance is +/-10 %. An RC corner frequency moves inversely with capacitance, so this part alone can place the corner anywhere from 9.1 % below to 11.1 % above its design value.
The K in ECUV1H562KBM is the tolerance letter capacitor and resistor makers have shared for decades, one character standing in for a plus-and-minus spread. Here it marks a 5600 pF part for bypass and general filtering, the positions where a spread of a tenth either way does no harm; keep the tighter letters for corners that have to land on the number.
