Product Overview
MC34072 dual operational amplifier for single-supply circuits from 3 V to 44 V, 8-lead SOIC
Condition
Condition: unused new old stock (NOS). Sold each.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Satisfaction guaranteed, every time.
Product Overview

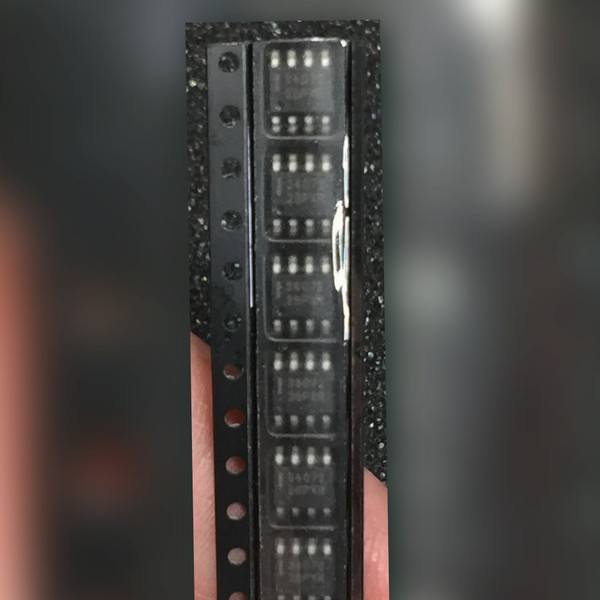

Two operational amplifiers share one 8-lead SOIC body in the MC34072, built to run from a single supply rail anywhere from 3 V to 44 V.
Key Features
- Dual op amp: two amplifiers per chip
- Single-supply operation from 3.0 V to 44 V
- Package: 8-lead SOIC (SOIC-8), surface mount
Applications
- Replacing an MC34072 on a board that calls for it in SOIC-8
- Active filters, buffers and gain stages on a single 5 V, 12 V or 24 V rail with no negative rail to build
Frequently Asked Questions
Is this the single, dual or quad version?
Dual. The MC34072 carries two op amps in one 8-lead SOIC.
Does it need a split supply?
No. It runs from a single supply between 3 V and 44 V.
Will it fit an 8-pin DIP socket?
No. It is the 8-lead SOIC surface-mount body, so it solders to SOIC-8 pads rather than plugging into a DIP socket.
The MC34072 was drawn up for boards that get one supply rail and no negative voltage to spare, which covers a good share of the gear that lands on a repair bench. A single battery or wall adapter is all the supply it asks for.
