200 Megohm High-Resistance Axial Resistor for Bleeder and Instrumentation Circuits
Condition

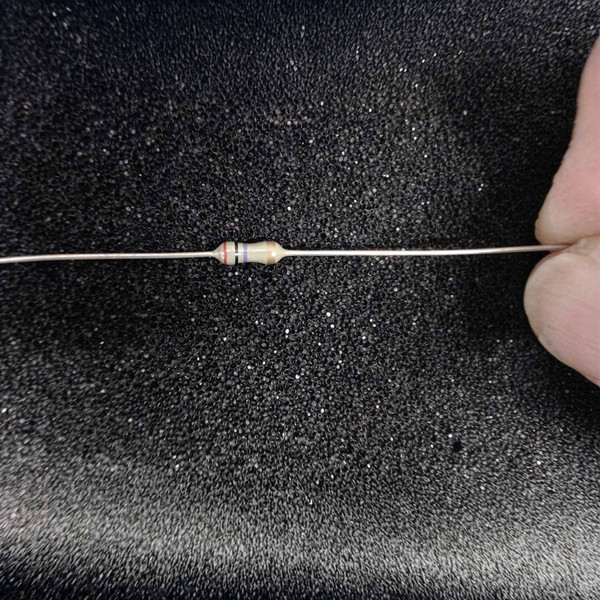

Unused new old stock (NOS). Color band sequence: red, black, violet, gold. Straight untrimmed wire leads with light-tan coated body. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
High-resistance axial-lead through-hole resistor with a 200M ohm (200,000,000 ohm) value and 5% tolerance. Designed for circuits requiring very high impedance, including bleeder networks, static bleed paths, and specialized test equipment.
Key Features
- Resistance value: 200M ohm (200,000,000 ohms)
- Tolerance: ±5% (gold band)
- Color bands: Red, black, violet, gold
- Form factor: Axial lead, through-hole
- Termination: Straight untrimmed wire leads
- Body finish: Light-tan coating
Applications
- Bleeder resistor networks for discharging high-voltage filter capacitors safely
- High-impedance voltage dividers and sensor input circuits
- Static dissipation paths and electrostatic charge discharge systems
- DIY tube amplifier builds, vintage radio repair, and sensitive electrometer circuits
Frequently Asked Questions
Are the wire leads untrimmed?
The leads are straight, full-length wire leads extending from each end of the axial body, suitable for point-to-point wiring, terminal strips, or circuit boards.
What mounting configuration does this resistor use?
This is an axial-lead component designed for through-hole printed circuit board mounting or direct point-to-point wiring.
How do the body bands decode for this resistance value?
The bands follow standard 4-band color coding: red (2), black (0), violet (10,000,000 multiplier), and gold (±5% tolerance), designating 200,000,000 ohms. Each piece costs less as the order grows - see the price-break table on this page.
Two hundred megohms is the quiet kind of resistance that sits in the background until high voltage needs a safe way back to ground. Put it into your divider or bleeder network and let it do its steady work.
