Motorola 2N1193 Germanium Alloy-Junction Switching & Audio Transistor
Condition
Unused new old stock (NOS). Three intact gold-plated leads in clean, unmounted condition. Markings legible: 2N1193. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

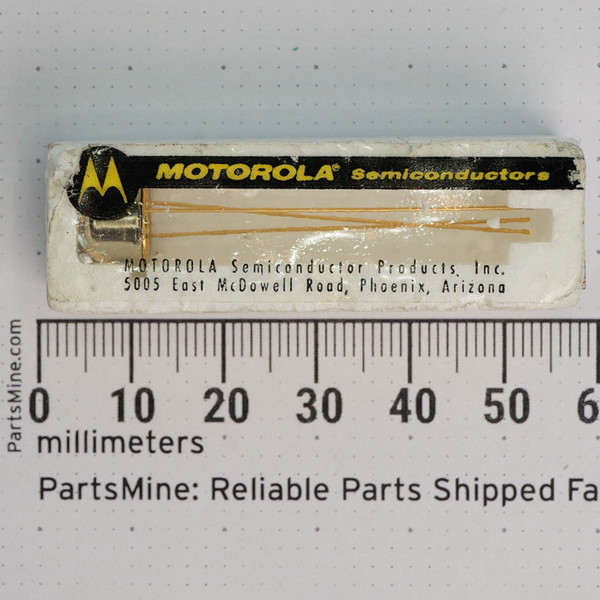

Motorola 2N1193 is a classic PNP germanium alloy-junction transistor in a hermetic TO-5 metal can package. Engineered for audio amplification and medium-speed switching circuits, it features long gold-plated leads and vintage Motorola Semiconductor Products manufacture from Phoenix, Arizona.
Key Features
- Semiconductor Material: Germanium (Ge) alloy junction
- Transistor Polarity: PNP
- Package Type: TO-5 metal can
- Collector-Base Voltage (VCBO): 40 V
- Collector-Emitter Voltage (VCEO): 25 V
- Continuous Collector Current (IC): 200 mA
- Total Power Dissipation (PC): 200 mW
- DC Current Gain (hFE): 70 to 300
- Lead Finish: Gold-plated leads
Applications
- Restoring vintage audio preamplifiers, transistor radios, and legacy hi-fi equipment.
- Building boutique guitar effects pedals such as vintage-voiced fuzz and booster circuits.
- Maintaining legacy test instruments and analog computers engineered for germanium switching profiles.
Frequently Asked Questions
What case style does the 2N1193 use?
The 2N1193 is housed in a standard three-lead TO-5 metal package with gold-plated leads.
Is the 2N1193 silicon or germanium?
It is an alloy-junction germanium PNP transistor.
How does the 2N1193 compare to other members of the 2N1191 through 2N1194 family?
The 2N1193 shares the same TO-5 package and 40V collector-base voltage rating as the rest of the family, but provides a higher DC current gain range of 70 to 300.
Nothing rounds off an audio transient quite like genuine vintage germanium. Drop this gold-lead classic into your bench project and let six decades of circuit history speak for itself.
