Schneider Electric Harmony XB4 Blue Illuminated Pushbutton - 22mm, 24V LED, 1NO+1NC, IP66/IP69K, Screw Terminals
Condition
Unused new old stock sourced from a contract manufacturer clearing surplus inventory. Box shows moderate wear and creasing; contents are clean and pristine with no damage observed. Box label confirms part number XB4BW36B5, date code 2021-08-27, LED 24V, Made in France. NO and NC contact blocks are attached and intact. CE and UL markings visible on the contact block face.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

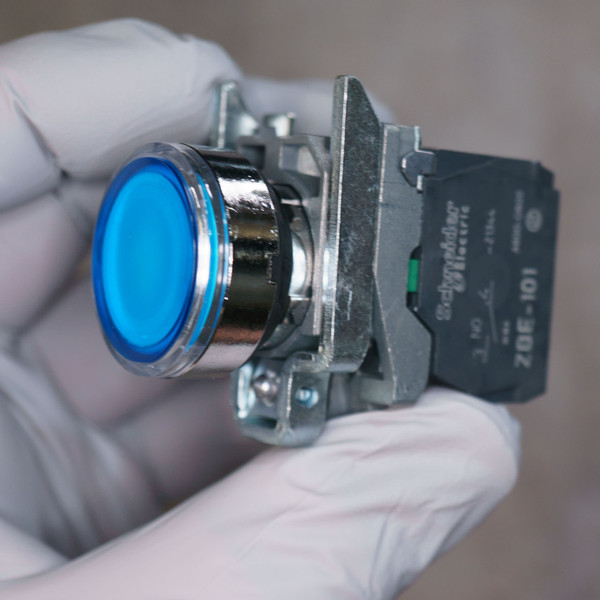

Schneider Electric XB4BW36B5 - a complete illuminated pushbutton from the Harmony XB4 series. Blue flush actuator with chrome-plated die-cast metal body, spring-return momentary action, and a built-in 24V AC/DC LED that provides both control input and visual status indication in a single 22mm panel-mount unit. Terminal face shows NO3/4 contacts with green insert and NC1/2 contacts with red insert. Manufactured in France.
Key Features
- Model: XB4BW36B5 - Harmony XB4 series, Schneider Electric
- Illumination: Blue LED, 24V AC/DC supply voltage
- Contact configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Mounting diameter: 22mm panel cutout
- Actuator type: Flush, spring-return (momentary action)
- Bezel: Chromium-plated metal
- IP rating: IP66 / IP67 / IP69 / IP69K; NEMA 4/4X/13
- Terminal type: Screw clamp terminals
- ZBE-101 NO contact block attached; Ith 10A, A600/Q600 ratings visible on block
- CE and UL marked
- Date code: 2021-08-27; Made in France
Applications
- Replacing a failed illuminated pushbutton on an industrial control panel - match the 22mm cutout, wire the NO and NC contacts to the existing circuit, and restore both switch function and blue status indication without panel modification
- Integrating into a new machine build or control cabinet where the operator needs momentary control input with a clear visual cue - the blue LED distinguishes this station from adjacent red or green buttons at a glance
- Wiring into a PLC input circuit for a start, jog, or interlock function where the 1NO+1NC configuration feeds both the PLC input and a seal-in or safety monitoring rung simultaneously
- Panel fabricators building washdown or food-processing enclosures where IP69K rating is required - flush actuator and sealed metal body hold up to high-pressure spray cleaning
- Makers and prototype builders who need a rugged, illuminated momentary switch for a custom enclosure, test fixture, or heavy-duty interactive installation where standard hobbyist buttons would not survive the environment
Frequently Asked Questions
What panel cutout size does this pushbutton require?
22mm diameter. This is a standard Harmony XB4 series mounting dimension. Confirm your panel cutout is 22mm before ordering.
Is the contact block included, or sold separately?
The ZBE-101 contact block is attached to the unit as shown in the photos. Both NO3/4 (green insert) and NC1/2 (red insert) contacts are present and intact.
What voltage does the LED require?
24V AC/DC. The label on the unit confirms this. Do not attempt to power the LED at a different voltage - the 24V marking on the terminal strip and box label both confirm this spec.
Is this a momentary or latching switch?
Momentary (spring-return). Pressing the button changes the circuit state only while held; it returns to its original position when released. It is not a latching or maintained-contact switch.
Is a manual or wiring diagram included?
Not included. The unit ships as shown.
A French-made Harmony XB4 that spent its first years in a contract manufacturer's stock room rather than a control panel - still clean, still complete, date code intact. Someone's machine is about to get exactly the blue button it was designed for.
