Product Overview
4.7k Ohm 0.25W Through-Hole Axial Lead Fixed Resistor
Condition

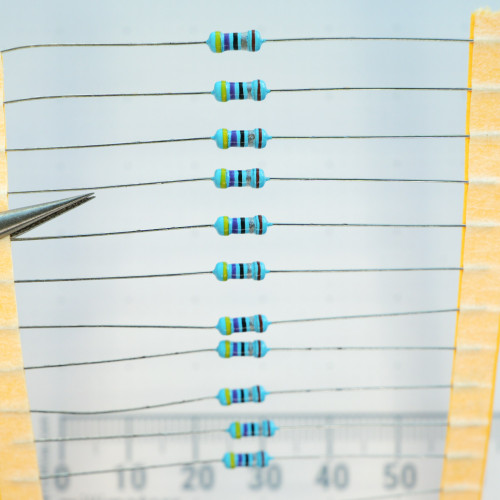

Unused new old stock (NOS). Leads are straight and clean. Visual inspection confirms intact blue coating with crisp five-band color markings.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
This 4.7k ohm fixed axial resistor is rated for 1/4 watt (0.25 W) dissipation. Built with through-hole wire leads on a standard sub-miniature form factor, it serves as a staple pull-up, bias, or termination component across analog and digital circuits.
Key Features
- Resistance value: 4.7 kΩ (4,700 ohms)
- Power rating: 0.25 W (1/4 watt)
- Package type: Axial lead through-hole
- Color code: 5-band (Yellow, Violet, Black, Brown, Brown)
- Tolerance: ±1%
- Body color: Blue

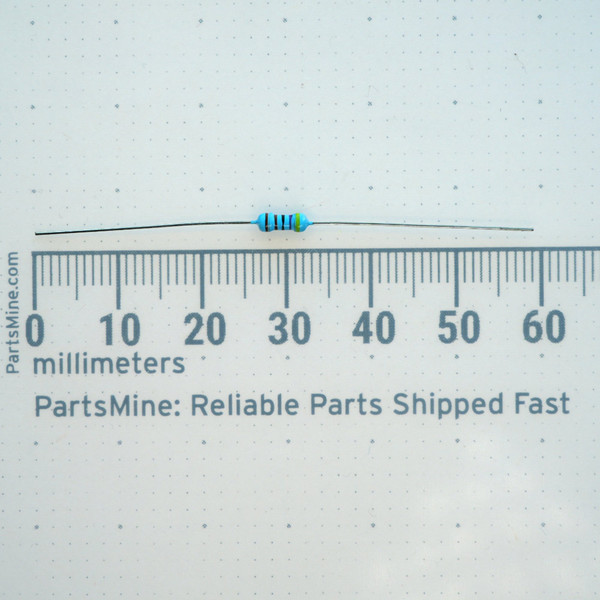

- Lead span: Approximately 60 mm total length
- Body length: Approximately 3.5 mm
Applications
- Soldering standard pull-up or pull-down resistors on microcontroller breakout boards and digital logic circuits.
- Replacing degraded bias and feedback resistors during vintage audio equipment repairs.
- Prototyping sensor dividers, LED ballasts, and transistor driver stages on perforated boards.
Frequently Asked Questions
What are the color bands on this resistor?
The resistor body displays five bands: Yellow (4), Violet (7), Black (0), Brown (multiplier x10), and Brown (±1% tolerance), which confirms the 4,700 ohm (4.7k) nominal value.
What is the lead length and spacing?
Overall tip-to-tip lead length is approximately 60 mm, with straight leads ready for breadboarding, point-to-point wiring, or through-hole PCB mounting.
Why buy just the quantity you need here?
Most component distributors force you to purchase taped reels or bulk bags of hundreds just to get a single replacement value. We sell individually counted parts so you can grab the exact count required for your bench repair without padding an inventory bin. Buying more pieces costs less each, and the price-break table on this page shows what each quantity costs. Orders ship for an $8 flat rate, free once your cart passes $28, leaving our Idaho warehouse the same or next business day.
Every bench tech knows the quiet relief of reaching into a drawer and finding the exact 4.7k pull-up needed to bring a silent circuit board back to life.
