Fixed 8V Rail in a TO-220: National Semiconductor LM7808CT, Pulled with Its Wiring Still On
Condition

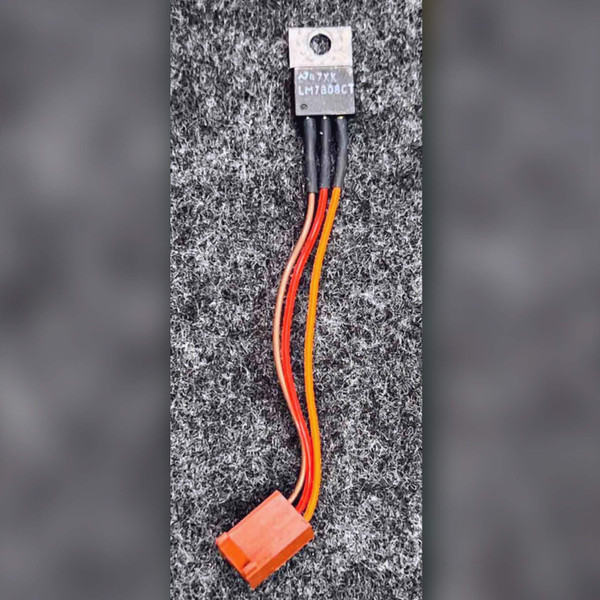

Used, pulled from decommissioned equipment. The photos show a unit from this lot. The TO-220 body is marked LM7808CT, with the National N logo on the line above it, immediately left of a lot code that photographs as 47XX. The metal tab carries the usual mounting hole and shows light scuffing and handling marks from its service life. All three leads are present, each sleeved in black heat shrink and joined to a short three wire pigtail in red, tan and orange that ends in a small orange rectangular connector housing. Nothing has been tested electrically here, and no dimension is quoted because no scale appears in these photos. What the camera shows is the spec.
Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The National Semiconductor LM7808CT is a fixed 8V three terminal linear regulator in the TO-220 package, built for local and on-card regulation where a board needs its own clean 8V rail instead of borrowing one from across the chassis. The part carries internal current limiting, thermal overload protection and safe-area compensation, and the listing it came from rates it to 1.5A with proper heatsinking. This one was pulled from decommissioned equipment rather than coming off a reel: the photographs show the leads sleeved and terminated into a short wire harness ending in an orange connector housing. Plan the install around that, not around bare full-length pins.
Key Features
- Fixed +8V regulated output
- TO-220 package with tab mounting hole, visible in the photos
- Rated up to 1.5A with proper heatsinking
- Internal current limiting and thermal shutdown
- Safe-area compensation on the pass element
- Three terminal device: input, ground, output
- Leads sleeved and wired to a three conductor pigtail with connector, as pictured
- Condition: used, pulled from decommissioned equipment, untested
Applications
- Repair technician rebuilding a control board that specifies an 8V rail and cannot substitute 7805 silicon
- Bench experimenter who wants a pre-regulator ahead of a 5V stage to shed heat in two steps
- Restorer keeping older instrumentation alive where the original 78xx part is no longer stocked locally
- Maker wiring a sensor or servo bus that was designed around a fixed 8V supply
Frequently Asked Questions
Has this regulator been tested?
No. It is sold untested, as a pull from decommissioned equipment. There is no measured output voltage, dropout figure or load test behind this listing. If your build cannot tolerate an unknown, bench check it on a current limited supply before it goes anywhere near the rest of the circuit.
Do the leads come as bare pins or with the wire harness shown?
The photographs show it as it was removed: each lead sleeved in black heat shrink and joined to a short three wire pigtail ending in an orange connector housing. Work from the photos, not from the assumption of full-length bare terminals. If your board needs clean pins, expect to unsolder or trim the wiring yourself, and expect the remaining lead length to be what the camera shows.
Will it actually deliver 1.5A?
Not confirmed here. The 1.5A figure is the family rating with proper heatsinking, and it depends entirely on your input voltage, ambient temperature and how much metal you bolt to the tab. Verify against the manufacturer datasheet and calculate the dissipation for your own input to output spread before use.
What am I actually buying with a used, untested pull like this?
You are buying a used LM7808CT in TO-220 like the one photographed: marked on the body, tab scuffed from service, leads sleeved and wired to a connector, with no electrical testing behind it. The condition risk is yours, which is why this sits where it sits rather than alongside sealed factory stock. For a repair bench that already owns a power supply and a meter, that is a reasonable trade, and if it does not suit you, our satisfaction guarantee still applies. Shipping is $8 flat rate and free once your order passes $28, so most people add this to a handful of other parts and let the whole order ride free, leaving our Idaho warehouse the same or next business day.
Eight volts is the odd cousin of the 78xx family, and this one still wears the pigtail it was wired with in whatever machine it served. Snip it loose, bolt the tab to something with mass, and give it a second circuit to hold steady.
