Product Overview
100kΩ Wirewound Multi-Turn Rotary Pot with Rear Solder Turrets
Condition

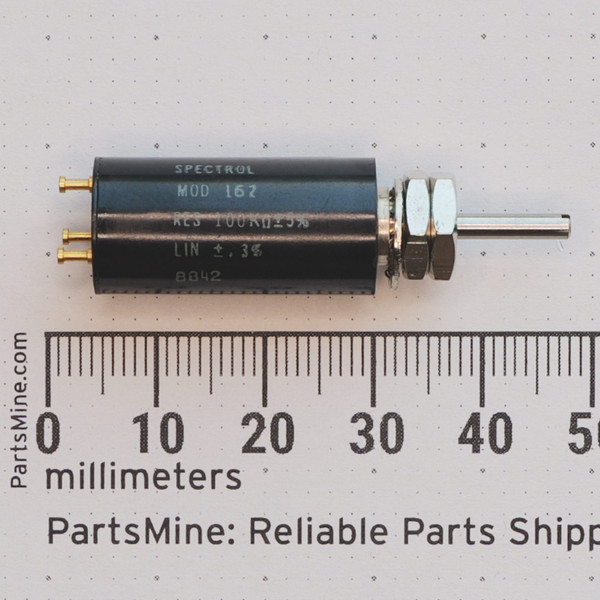

Includes threaded bushing, lock washer, and two hex mounting nuts. Markings legible: SPECTROL MOD 162 RES 100KΩ±5% LIN ±.3% 8842.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Spectrol Model 162 (part number 162-11104) is a compact 10-turn precision wirewound potentiometer designed for accurate panel-mounted analog adjustment. With a 100 kΩ total resistance and ±0.3% independent linearity, it provides fine manual calibration and stable voltage division across a multi-turn mechanical rotation.
Key Features
- 100 kΩ nominal resistance with ±5% resistance tolerance
- ±0.3% independent linearity for precise analog control
- 10-turn multi-turn rotary construction
- Three gold-plated rear turret solder terminals
- Threaded panel bushing mount with two hex nuts and washer
- Smooth round actuator shaft
- Marked date code: 8842
Applications
- Dialing in precise bias voltages and reference signals during bench calibration.
- Replacing obsolete multi-turn adjustment pots on analog test gear and industrial controllers.
- Building custom audio synthesizers, variable power supplies, and DIY test fixtures requiring fine potentiometer control.
Frequently Asked Questions
What is the terminal configuration?
This unit features three solder turret pins extending from the rear of the body for direct point-to-point wiring.
How is this potentiometer mounted?
It mounts through a standard panel cutout using the threaded front bushing, secured with the included lock washer and two hex nuts.
Why buy this individual potentiometer instead of hunting through mixed surplus lots?
Shipping? $8 flat rate, free once your order passes $28 - and it leaves the Idaho warehouse the same or next business day.
Built for the technician who knows that a clean ten-turn sweep is still the most dependable way to tune an analog circuit. Drop it into your panel, wire the turrets, and dial it in.
