Product Overview

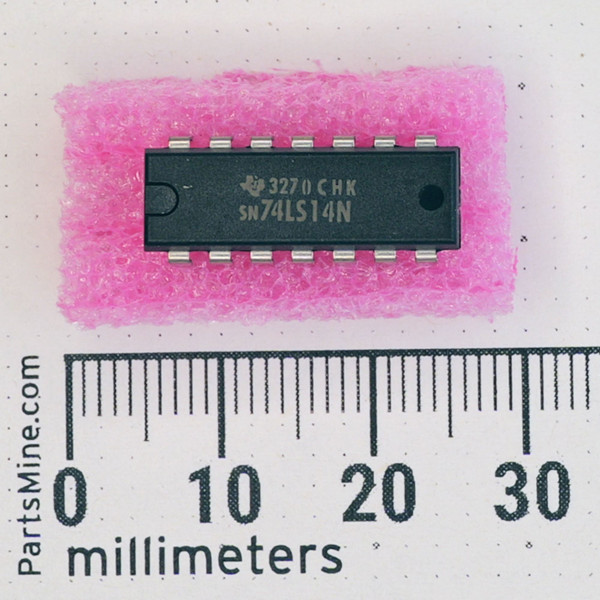

Texas Instruments SN74LS14N 6-Channel Logic IC
Condition
Used equipment pull. Markings legible: 3270 CHK and SN74LS14N. Evaluation: Visual inspection only. Function testing not performed.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Texas Instruments SN74LS14N hex inverter with Schmitt-trigger inputs in a 14-pin dual in-line package. Provides six independent inverting channels designed for 5.0V TTL logic systems, providing signal conditioning and noise margin on digital inputs.
Key Features
- Hex Schmitt-trigger inverter with 6 independent logic channels
- Low-power Schottky TTL (74LS series) logic family
- 5.0V nominal supply voltage (4.75V to 5.25V operating range)
- 14-pin plastic DIP (PDIP-14) through-hole package with 0.300-inch row spacing
- 0°C to 70°C commercial operating temperature range
Applications
- Debouncing mechanical pushbuttons and rotary switches on custom control panels
- Squaring up slow or noisy clock lines on digital breadboard builds
- Repairing legacy industrial controller boards, arcade hardware, and test instruments
- Building simple hardware relaxation oscillators and pulse generators on perfboard
Frequently Asked Questions
What logic function does the SN74LS14N provide?
It contains six independent inverters featuring Schmitt-trigger action on every input, transforming slow-rising or noisy signals into sharp, clean digital outputs.
What package type is this IC?
This is a standard 14-pin plastic dual in-line package (PDIP-14) designed for through-hole PCB mounting or standard DIP sockets.
Why buy an individual pulled component instead of chasing bulk surplus?
You get the specific Texas Instruments chip needed to complete a repair without buying an untracked grab bag. Flat-rate $8 shipping applies to your entire order, turning free once your cart passes $28, with all orders leaving our Idaho warehouse the same or next business day.
Few things clear up a noisy input line quite like a dedicated hardware Schmitt trigger. Drop it into your board and enjoy clean, predictable transitions.
