Harris CD74HC138E 16-Pin DIP Decoder - 74HC138 CMOS Logic, Active-Low Outputs, Unused NOS
Condition

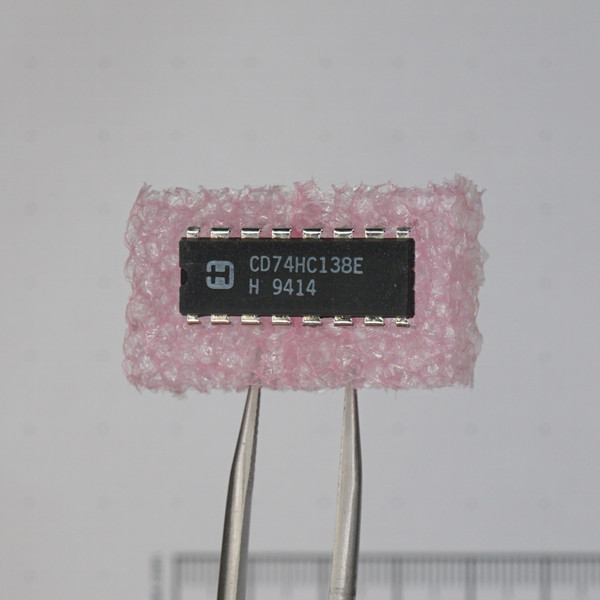

Unused NOS. Markings legible: CD74HC138E, Harris logo, lot code H 9414 (14th week of 1994 production). All 16 leads straight, clean, and free of corrosion. Sourced from an electronics distributor consolidating inventory.
Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Harris Semiconductor CD74HC138E - a 74HC-series high-speed CMOS 3-to-8 line decoder/demultiplexer in a 16-pin PDIP through-hole package. Three binary select inputs (A0, A1, A2) drive one of eight active-low outputs. Three enable inputs (two active-low, one active-high) give full control over output activation. Operates on 2V to 6V supply. Typical propagation delay of 13ns at 5V. Direct drop-in for 74HC138 sockets in vintage and modern circuits alike.
Key Features
- Function: 3-to-8 line decoder/demultiplexer with inverting (active-low) outputs
- Supply voltage: 2V to 6V
- Propagation delay: 13ns typical at 5V
- Package: 16-pin PDIP, through-hole - plugs directly into standard DIP sockets and breadboards
- Three enable inputs for cascading and bus control
- High-speed CMOS (HC) logic family - CMOS-level inputs
- Operating temperature: -55°C to 125°C
- Lot code H 9414 - manufactured week 14 of 1994
Applications
- Retro-computing repair: pulling a failed 74HC138 from a vintage computer board, dropping this DIP straight into the socket, and verifying address decode is restored without adapter boards or rework
- Arcade board repair: swapping a dead decoder on a logic board to bring back display output or peripheral selection, using standard desoldering tools on original through-hole pads
- Breadboard prototyping: plugging the 16-pin DIP into a standard breadboard to wire up memory address decoding or chip-select logic during circuit development
- Industrial control repair: replacing a failed decoder/demultiplexer on a legacy automation board to restore data routing without circuit modifications or re-validation
- Maker and hobbyist projects: driving 8-channel LED arrays, multiplexing displays, or managing peripheral selection lines with a single 3-bit control bus
Frequently Asked Questions
Is this compatible with TTL logic outputs?
The CD74HC138E uses CMOS-level input thresholds. It will work reliably when driven by CMOS or LVTTL outputs. If your system drives it directly from classic TTL outputs, the TTL high-level voltage may fall short of the HC input high threshold at lower supply voltages - in that case, the HCT variant (CD74HCT138E) is the correct choice for direct TTL compatibility.
What outputs does this provide - active-high or active-low?
Active-low. The selected output goes low; all others remain high. If your application needs active-high outputs, external inversion is required.
Does this include a datasheet or documentation?
Not included. The CD74HC138 / 74HC138 is a widely documented standard logic device and datasheets are available from multiple sources.
What is the "E" suffix in CD74HC138E?
The "E" suffix designates the PDIP (Plastic Dual In-line Package) - the standard 16-pin through-hole package. Surface-mount versions of the same device carry different suffix letters (e.g., "M" for SOIC).
A 1994-vintage Harris decoder that has been waiting thirty years for the right repair job - leads straight, markings sharp, ready to drop into the socket and close the loop.
