SMC SY50M Series Single-Wiring Valve Manifold Segment
Condition

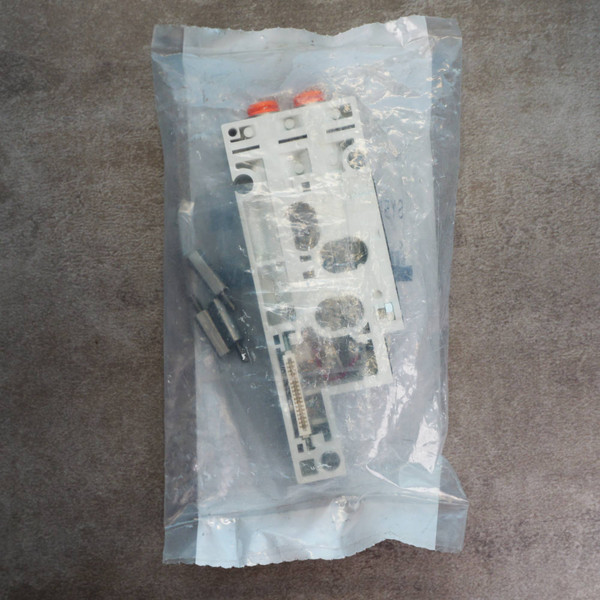

Unused new old stock (NOS). Sealed in labeled manufacturer packaging with mounting hardware. Markings legible: SY50M-2-1SA-N7 SMC MADE IN JAPAN.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Modular manifold block segment engineered for SMC SY5000 plug-in pneumatic directional control valves. Designed for expanding or maintaining SS5Y5 series manifolds, this base provides dedicated side piping ports alongside internal electrical bus routing to streamline pneumatic automation layouts.
Key Features
- Compatible with SMC SY5000 plug-in valves and SS5Y5 series modular manifolds
- Port A and B connections feature dual 1/4-inch OD one-touch push-to-connect tube fittings
- Single-wiring electrical configuration with integrated internal multipin connector
- Side-ported design for clean pneumatic line routing
- Molded gasket channel and alignment bosses for modular inter-block stacking
- Includes threaded assembly mounting hardware
- Manufactured in Japan
Applications
- Adding an extra solenoid actuator station to an existing packaging or assembly line manifold.
- Replacing a damaged port block on machine tooling valve racks without rebuilding the entire assembly.
- Prototyping custom multi-actuator pneumatic circuits in robotics labs and automation test benches.
Frequently Asked Questions
What valve series mounts to this station base?
This base segment is built for SMC SY5000 series plug-in directional control valves and integrates into SS5Y5 modular manifolds.
What tubing size do the ports accept?
The integrated orange one-touch push-to-connect fittings accept standard 1/4-inch outside diameter (OD) pneumatic tubing.
What hardware is included with this base block?
Threaded mounting screws and assembly hardware come enclosed in the package alongside the base block.
What is needed to integrate this station block into an existing stack?
This block mounts directly between adjacent SS5Y5 manifold segments using the included tie-rod screws, aligning the perimeter gasket face and internal multipin electrical connection.
Modular pneumatic manifolds are the unsung backbone of factory air, snapping together one clean station at a time. Drop this block into your stack, push in your air line, and let the system run.
