Murrelektronik 90976 / Phoenix Contact EB 10-DIK Red Potential Rails
Condition

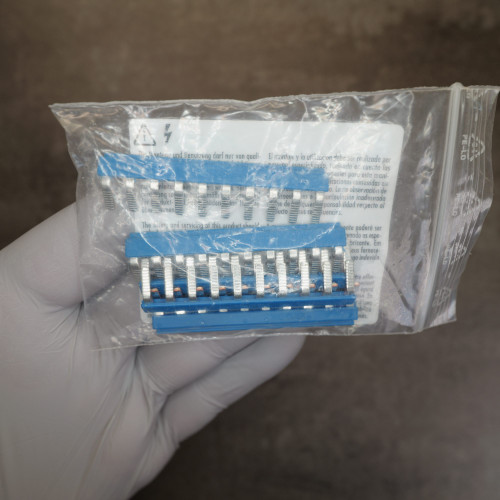

Unused new old stock (NOS). Factory package contains 5 insertion bridge bars. Markings legible on parts: EB 10-DIK and Phoenix Contact. Package label marked Murrelektronik Art.-No. 90976, Pcs. 5, Code 66048.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Murrelektronik 90976 is a 10-position comb-style insertion bridge engineered for cross-connecting and distributing potential across adjacent terminal blocks. Manufactured under Phoenix Contact designation EB 10-DIK (catalog 2716774), these red jumper bars allow quick, secure commoning in 6.2 mm pitch terminal arrays without daisy-chaining individual wires. Designed for DIN rail interface relay bases and multi-level terminals, including the Murrelektronik MIRO 6.2 series and Phoenix Contact DIK, DOK, and DEK terminal block families.
Key Features
- 10-pole comb-style insertion bridge
- 6.2 mm nominal pitch (6.15 mm pin center-to-center spacing)
- Red polyamide insulating jacket
- Tin-plated copper contact prongs with ribbed tabs for retention
- Screw-clamp insertion into standard terminal bridge shafts
- 5 individual jumper bars per factory pack
Applications
- Commoning positive or negative DC bus connections across slim DIN-rail relay sockets
- Cross-connecting supply rails on multi-level sensor and actuator terminal blocks
- Simplifying cabinet distribution wiring and eliminating point-to-point jumper wires
- Custom benchtop test fixtures and modular control builds requiring clean power distribution
Frequently Asked Questions
What terminal block lines are compatible with these bridges?
These bridges fit terminal blocks and slim relay sockets designed with 6.2 mm spacing and bridge insertion shafts, including Murrelektronik MIRO 6.2 modules and Phoenix Contact DIK, DOK, and DEK terminal series.
Can these bridges be cut to span fewer terminals?
Yes. The red plastic body and internal copper bar can be trimmed with diagonal cutters to bridge 2 through 9 positions as needed.
Why do the bridges carry Phoenix Contact markings?
Murrelektronik packages and catalogs original Phoenix Contact EB 10-DIK RD insertion bridges under Murrelektronik article number 90976 as the dedicated jumper accessory for MIRO 6.2 interface modules.
What is the pin spacing between bridge prongs?
The bridge has a nominal pitch of 6.2 mm (measured 6.15 mm center-to-center), designed specifically to match standard 6.2 mm modular terminal slices.
Clean potential distribution turns a rat's nest of wire jumpers into an orderly DIN rail. Slide the comb home, tighten the clamps, and let the cabinet look like it was built by a pro.
