Open-Frame DC Relay with 110 VDC 6000 Ohm Coil and Screw Terminals
Condition
Unused new old stock (NOS). Markings legible: 110 VDC 6000 ohm, W99SDX-4, MAGNECRAFT. Sold each.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Satisfaction guaranteed, every time.
Product Overview

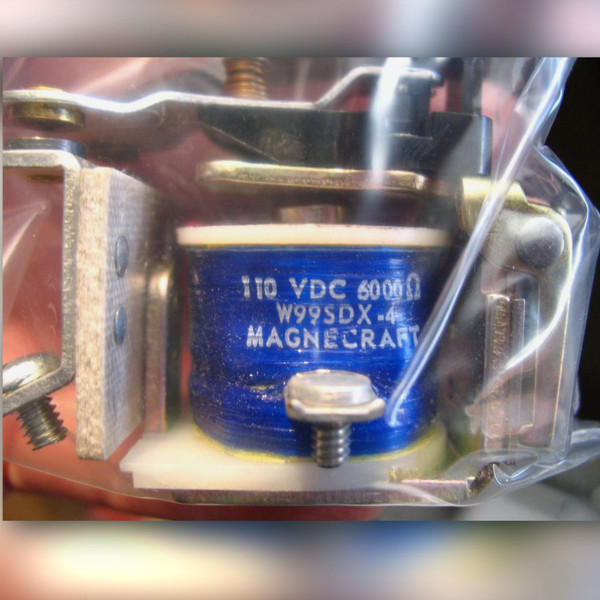

Open-frame relay from Magnecraft Electric Co. of Chicago, part number W99SDX-4, with a 110 VDC coil wound to 6000 ohms.
Key Features
- Part number W99SDX-4
- Coil: 110 VDC, 6000 ohm
- Coil current: 18 mA at 110 VDC
- Open-frame construction on a metal L-bracket
- Screw terminals
- Maker: Magnecraft Electric Co., Chicago, Illinois
Applications
- Replacing a Magnecraft W99SDX-4 in a 110 VDC control panel, number for number
- Switching a circuit from a 110 VDC control line on a bench build or test fixture
Frequently Asked Questions
Is the coil AC or DC?
DC. The coil is marked 110 VDC.
How much current does the coil draw?
18 mA at 110 VDC.
Magnecraft built relays in Chicago under a plain motto: in relays there is no substitute for reliability. On an open frame the coil, armature and screw terminals all sit in plain view, so the panel it goes into gets a relay its tech can inspect without taking anything apart.
