NTE156A General Purpose High Voltage Silicon Rectifier DO-27
Condition

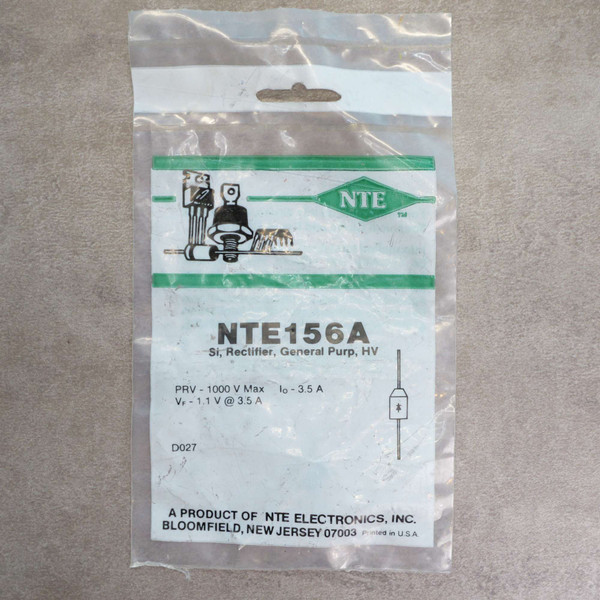

New old stock (NOS). Unused surplus component with straight axial wire leads and clean cylindrical body.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Here for our customers, with a satisfaction guarantee that means what it says.
Product Overview
NTE Electronics NTE156A is a general-purpose, high-voltage silicon rectifier diode rated for 1000V peak reverse voltage and 3.5A average forward current. Housed in a standard DO-27 axial-lead package, it functions across legacy power supplies, linear rectification circuits, and industrial control equipment as a direct cross for ECG156A.
Key Features
- Peak reverse voltage rating of 1000V max
- Average forward current capacity of 3.5A
- Forward voltage drop of 1.1V at 3.5A
- Standard DO-27 axial through-hole form factor
- Direct replacement cross for ECG156A
Applications
- Bench power supply repair and linear AC-to-DC mains rectification
- Flyback diode suppression across inductive relay coils and solenoids
- Tube amplifier power stage restoration and discrete bridge rectifier assembly
Frequently Asked Questions
What package style does the NTE156A use?
It uses a standard DO-27 (DO-27A) axial-lead through-hole case.
What industry part number does this cross to?
The NTE156A is the direct solid-state replacement cross for ECG156A.
Sometimes getting a legacy power supply back on the rail just takes one honest, high-voltage diode that drops right into place.
