Product Overview

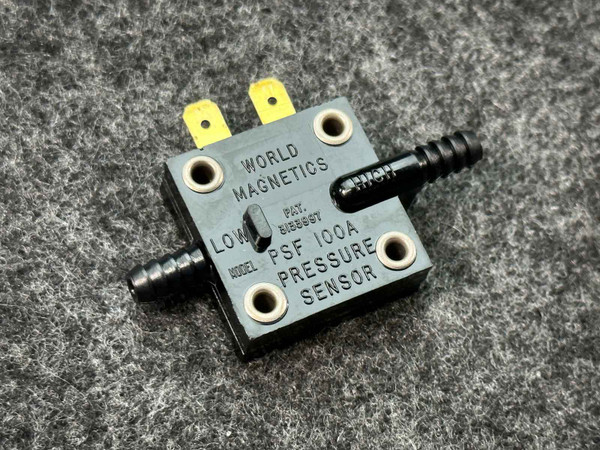

World Magnetics PSF100A Pressure Sensor, Miniature Pressure Switch, 1.5"H20.
Condition:
Unused, clean, reclaimed from equipment that was never put into service.
The World Magnetics PSF100A is a miniature pressure switch renowned for its ultra-sensitive response and robust design, making it ideal for various applications requiring precise pressure, vacuum, or differential pressure monitoring.
Key Features
Versatile Functionality: Capable of sensing pressure, vacuum, and differential pressure. Adjustable Set Points: Offers set points ranging from 0.1" to 50.0" H₂O, accommodating diverse operational requirements. Compact and Lightweight: Miniature size and low weight facilitate easy integration into space-constrained systems. Patented Shock and Vibration Resistance: Ensures reliable performance in environments subject to mechanical disturbances. Rapid Response Time: Provides quick actuation for timely system responses. Extended Lifespan: Engineered for over 20 million cycles, ensuring long-term reliability. Gold Contact Points: Dual gold contacts enhance conductivity and reduce corrosion risk. Rugged Construction: Meets Military Standard (MIL-SPEC) for durability in demanding conditions.
Specifications
Switch Type: Single Pole Single Throw (SPST), normally open, with double-make/double-break contacts. Switching Medium: Air and compatible fluids on the "High" side. Mechanical Life: Exceeds 20 million cycles. Proof Pressure: Up to 15 psi, depending on set point and diaphragm material. Operating Temperature: Standard range from +40°F to +150°F; extended ranges available upon request. Case Material: Polycarbonate, with other materials available. Porting Options: Two 0.200" diameter barbed ports suitable for 1/8" to 3/16" ID tubing. Diaphragm Material: Standard polyurethane; Teflon® optional. Electrical Connections: 0.187" x 0.020" tab-type terminals compatible with quick disconnects. Current Rating: Up to 40mA resistive. Operating Voltage: AC/DC up to 30V with resistive load; 120 VAC for neon lamp load.
Applications
The PSF100A is suitable for a wide range of applications, including: Medical devices HVAC systems Industrial automation Pneumatic controls Environmental monitoring Aerospace systems
Why Choose the PSF100A
Selecting the PSF100A pressure sensor ensures: Precision Monitoring: Accurate detection of pressure changes for optimal system performance. Durability: Robust design withstands harsh conditions, reducing maintenance needs. Versatility: Adaptable to various applications, offering flexibility in system design. Cost-Effectiveness: Competitive pricing without compromising on quality or reliability.
