National Semi 175MHz VIP Operational Amplifier DIP-8
Condition

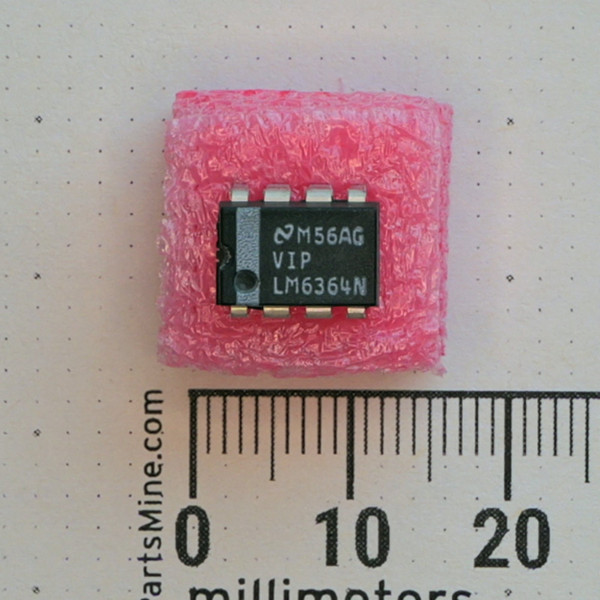

Used component pulled from equipment. Markings are legible: National Semiconductor logo, M56AG, VIP, LM6364N. Through-hole DIP-8 pins are intact. Visual inspection performed; functional testing not performed.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The National Semiconductor LM6364N is a high-speed operational amplifier built on the Vertically Integrated PNP (VIP) process. Engineered with a decompensated architecture, it offers high slew rates and wide bandwidth for systems operating at closed-loop gains of +5 or greater.
Key Features
- 175 MHz gain bandwidth product
- 300 V/µs typical slew rate
- Decompensated design stable for closed-loop gains ≥ +5 (inverting gains ≥ -4)
- Operates from 4.75 V to 32 V single supply or ±2.375 V to ±16 V dual supply
- Standard 8-pin plastic dual in-line package (DIP-8) through-hole mounting
Applications
- Replacing obsolete high-speed op-amps in legacy test gear and signal processing boards
- Wideband signal amplification and fast pulse buffering on breadboards and prototype builds
- Custom analog circuits requiring high slew rate amplification at moderate to high gains
Frequently Asked Questions
Is the LM6364N unity-gain stable?
No. The LM6364 is a decompensated operational amplifier designed for stability at gains of +5 or greater. Circuit designs with lower gain require external compensation or a unity-gain stable alternative like the LM6361.
What supply rails does this op-amp accept?
It operates across a wide supply voltage range from 4.75 V to 32 V when configured for single supply, or ±2.375 V to ±16 V on dual supplies.
Why buy this single pulled IC instead of chasing an untracked surplus lot?
You receive the exact through-hole chip shown with clear National Semiconductor markings, perfect for completing a one-off repair or prototype without purchasing surplus packs. Standard shipping is $8 flat rate, or free when your order exceeds $28, with all orders departing our Idaho warehouse the same or next business day.
Classic VIP-process speed in a maker-friendly through-hole package. Drop it into an 8-pin socket and put those 300 volts per microsecond to work on your bench.
