Product Overview
Microprocessor-Compatible 8-Bit Analog to Digital Converter DIP
Condition
Unused, New Old Stock (NOS). Visual inspection completed with no issues noted. Sourced from an electronics distributor that was consolidating inventory.
Ships same business day. Hard-to-find parts since 1999. Fair prices, real help.
Product Overview

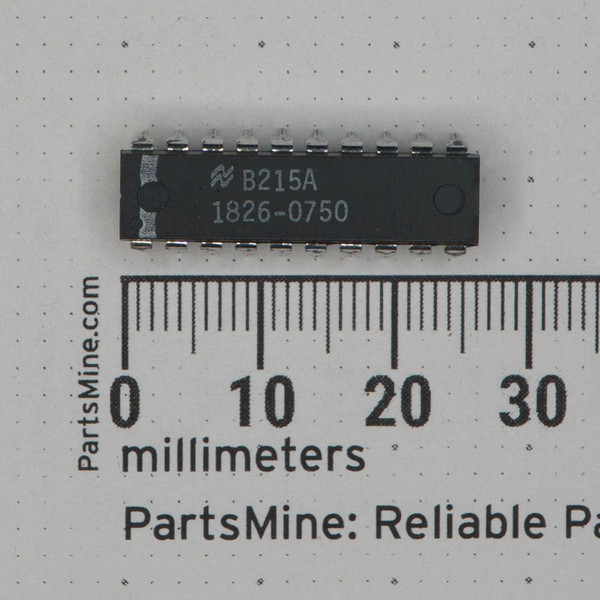

National Semiconductor 1826-0750 is an 8-bit microprocessor-compatible analog-to-digital converter, corresponding to the ADC0801LCN. Designed for direct interface with 8-bit microprocessor systems, it converts analog voltage inputs into parallel 8-bit digital outputs for processing and control applications.
Built for classic embedded and instrumentation designs, the ADC0801LCN architecture integrates easily with legacy bus structures. It remains a common requirement in repair and maintenance of older data acquisition systems, industrial controllers, and test equipment that specify this exact converter family.
Key Features
- HP part number: 1826-0750
- Generic device: ADC0801LCN
- 8-bit resolution analog-to-digital converter
- Microprocessor-compatible interface
- Parallel digital output format
- Designed for direct integration with 8-bit systems
- Through-hole DIP package
- Manufactured by National Semiconductor
Applications
- Legacy 8-bit microprocessor systems
- Industrial control boards
- Data acquisition modules
- Laboratory instrumentation
- Test and measurement equipment repair
- Embedded system prototypes using parallel ADCs
- Replacement for boards specifying ADC0801LCN
Frequently Asked Questions
Is 1826-0750 the same as ADC0801LCN?
Yes. 1826-0750 is the HP part designation corresponding to the National Semiconductor ADC0801LCN device.
What resolution does this converter provide?
This is an 8-bit analog-to-digital converter.
Is it compatible with older 8-bit microprocessors?
Yes. It is specifically designed to interface directly with 8-bit microprocessor systems using a parallel output structure.
Is this still in production?
This device is considered legacy and is typically available as remaining inventory for maintenance and repair applications.
When a classic 8-bit system expects a parallel ADC and the board calls out ADC0801LCN, this National Semiconductor part keeps the data path exactly as designed.
