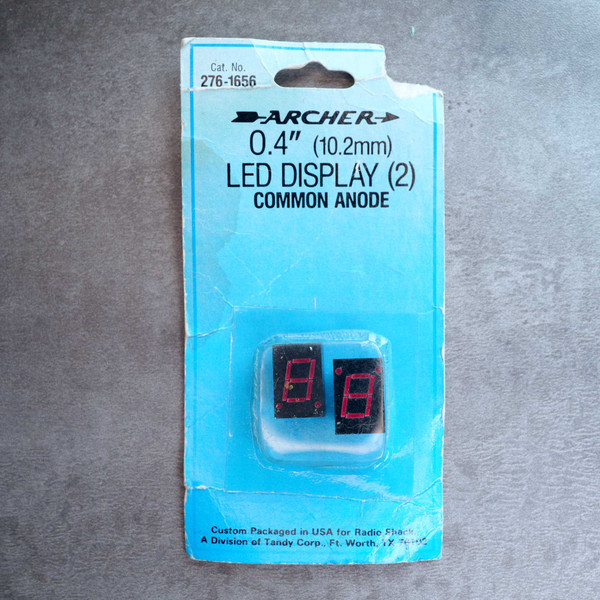

Archer 276-1656 0.4-Inch Common Anode Red 7-Segment LED Displays
Condition
Unused new old stock (NOS). Two display modules included per card. Terminals are straight and unbent, with clean display faces. Printed card back provides the complete pinout diagram and maximum electrical ratings.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Archer catalog number 276-1656 provides a pair of vintage 0.4-inch (10.2 mm) 7-segment common anode red LED displays for breadboarding, bench repairs, and digital readouts. Distributed through Radio Shack and Tandy Corporation, each DIP-14 module features operable left and right decimal points and mounts easily into standard IC sockets.
Key Features
- Common anode circuit configuration with standard red emission
- 0.4-inch (10.2 mm) character height with left and right decimal points
- DIP-14 package footprint with 0.100-inch pin pitch and 0.300-inch row spacing
- 25 mA continuous forward current per segment or decimal point
- 400 mA peak forward current rating (pulse duration 10 microseconds or less)
- 50 mW power dissipation per segment at 25 degrees Celsius
- 6.0 V peak inverse voltage rating per segment
- Operating temperature range from -35 to +85 degrees Celsius
Applications
- Restoring readout segments in vintage Radio Shack digital clocks, frequency counters, and sensor meters
- Prototyping decimal counters and countdown timers on solderless breadboards
- Replacing damaged common anode LED displays in retro test equipment and hobby electronics projects
Frequently Asked Questions
Which pins provide the common anode connection?
Pins 3 and 14 are internally connected common anode terminals. Connecting positive DC supply voltage through your current-limiting resistors to either pin powers the display segments.
Can this display directly replace a common cathode display?
No. Common anode displays require an active-low sink driver or switching to ground to turn on segments. Common cathode displays require active-high source drive.
What socket footprint does this module fit?
The module uses a standard DIP-14 footprint with 0.100-inch pin spacing and 0.300-inch row width, fitting standard dual in-line IC sockets, wire-wrap sockets, and standard solderless breadboards.
There is an unmistakable warmth to classic red seven-segment displays that modern screens cannot replicate. Plug them into your breadboard and let those clean crimson digits do the talking.
