Product Overview
3-Pole Audio Line Plug with Chuck Strain Relief & Silver Contacts
Condition

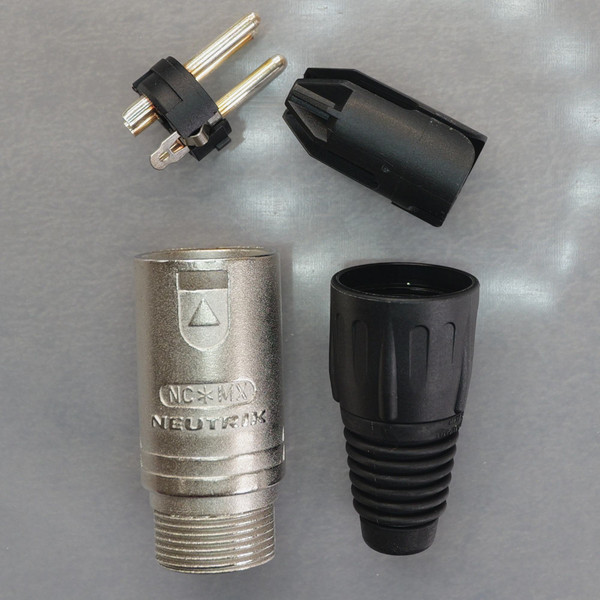

Unused new old stock (NOS). Markings legible: NC*MX NEUTRIK on shell; LIECHTENSTEIN on insert face. Complete unassembled four-piece assembly including nickel-plated shell, 3-pin male insert, internal chuck clamp, and threaded flexible boot.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Neutrik NC3MX (cast as NC*MX on the shell) is a heavy-duty 3-pole male XLR cable connector engineered for balanced audio and data transmission. Built with a diecast zinc housing and an internal polyacetal chuck-type strain relief, it locks firmly onto cable jackets to protect internal solder joints from tension and bending fatigue.
Key Features
- 3-pole male XLR configuration with silver-plated brass contacts
- Rugged diecast zinc housing with protective nickel plating
- Polyacetal chuck-type strain relief clamping cable diameters from 3.5 mm to 8.0 mm
- Solder cup terminals accommodating wire up to 14 AWG (2.5 mm²)
- Glass-reinforced polyamide insert rated up to 16 A per contact
- Threaded black boot with ribbed strain-relief tail
- Integrated chassis ground contact tab for continuous shield continuity
Applications
- Terminating custom balanced microphone lines and studio interconnects
- Field repairing broken 3-pin DMX512 lighting control cables before an event
- Wiring DIY preamps, mixers, and modular synth audio interfaces
Frequently Asked Questions
What cable outer diameter does this connector clamp?
The internal chuck strain relief clamps outer cable jackets measuring between 3.5 mm and 8.0 mm.
What wire gauge fits the solder cups?
The solder cups accept stranded wire conductors up to 14 AWG (2.5 mm²).
Why does the housing read NC*MX rather than NC3MX?
Neutrik uses the NC*MX casting across the entire X-series line, using the asterisk as a placeholder for contact count. The included 3-pole male insert defines this specific assembly as catalog number NC3MX.
The classic Neutrik chuck clamp has saved more live sets from accidental cord yanks than anyone can count. Solder it clean, thread the boot down tight, and let the signal run.
