Product Overview
Military Style 2K Ohm Linear Panel Pot 2 Watt - RV4NAYSD202A
Product Condition

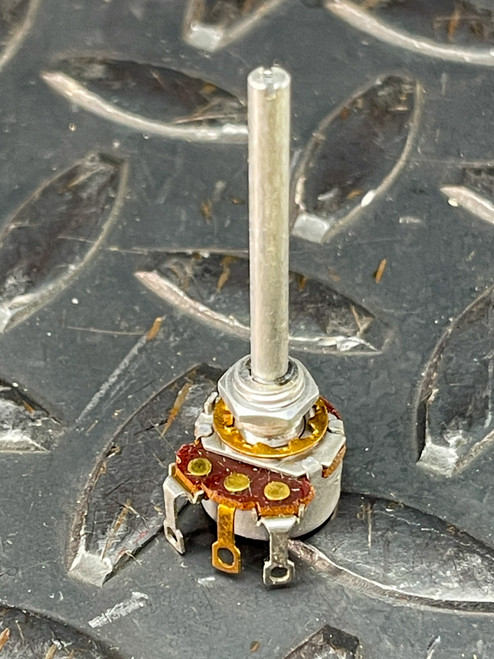

Unused, New Old Stock PEC RV4NAYSD202A potentiometer. Clean metal can housing marked “PEC Made in Canada,” with straight solder lugs, threaded bushing, and slotted metal shaft. No retail packaging included.
Ships same business day. Reliable parts at honest prices since 1999. Real humans.
Product Overview
PEC RV4NAYSD202A is a 2K ohm linear taper potentiometer built to the RV4 military style specification. The RV4 designation identifies a 1.125 inch diameter hot-molded carbon element rated at 2 Watts at 70°C. The “202” resistance code corresponds to 2,000 ohms, and the final “A” indicates linear taper.
This unit features a standard 3/8"-32 threaded bushing, dust-resistant enclosure, and slotted metal shaft. Designed for high-reliability service in industrial and defense equipment, the RV4 series is known for solid carbon composition construction and long rotational life. It remains a preferred choice in demanding audio, instrumentation, and control applications.
Key Features
- Manufacturer: Precision Electronic Components (PEC)
- Model: RV4NAYSD202A
- Resistance: 2K ohms
- Taper: Linear
- Power Rating: 2 Watts at 70°C
- Construction: Hot-molded carbon composition element
- Mechanical Rotation: Approx. 312° total travel
- Electrical Rotation: Approx. 285° effective range
- Mounting: 3/8"-32 threaded panel bushing
- Shaft: Slotted metal shaft
- Marking: PEC Made in Canada
Applications
- Military and aerospace electronics maintenance
- Industrial control panels
- Test and measurement equipment calibration
- Vintage mixer and amplifier restoration
- Power supply adjustment controls
- Analog instrumentation circuits
- Replacement for RV4 series potentiometers
Frequently Asked Questions
Is this a linear or audio taper potentiometer?
This unit is linear taper, designated by the “A” suffix in the RV4 series nomenclature.
What does the 202 code mean?
“202” represents 20 with two zeros, equaling 2,000 ohms (2K).
What power level can it handle?
The RV4 style is rated at 2 Watts at 70°C, with power derating at higher temperatures.
What mounting hardware does it use?
It uses a standard 3/8"-32 threaded bushing for panel mounting and solder lug terminals for wiring.
Can this be used in audio equipment?
Yes. While originally designed for high-reliability industrial and military applications, RV4 pots are frequently used in professional audio and amplifier builds requiring durable, smooth linear response.
Heavy can, molded carbon core, built for environments harsher than most benches will ever see. If your project calls for a control that feels solid and stays that way, this RV4 is ready for the panel.
