AMP Amphenol 24-Pin DIP IC Socket Through-Hole NOS

24P Dual Inline Through-Hole Socket for Standard 0.6 Inch DIP ICs

Product Condition

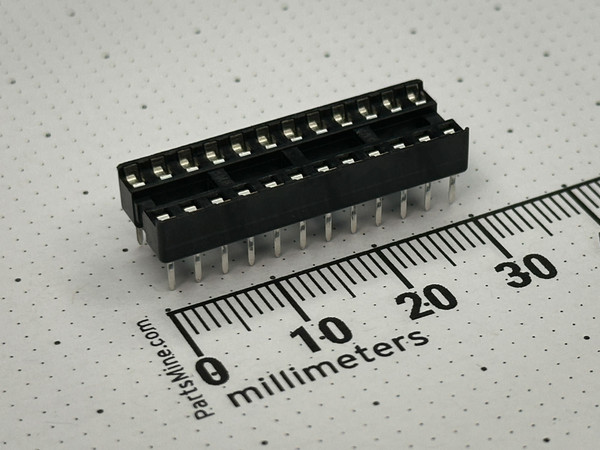

Unused, New Old Stock. Black plastic 24-pin DIP IC socket showing clean, shiny pins and no visible damage or wear.

Ships same business day. Online since 1999. Honest pricing, real humans.

Product Overview

AMP / Amphenol 24-pin DIP IC socket designed for through-hole PCB mounting. Accepts standard 24-pin Dual Inline Package integrated circuits with 0.1 inch pin pitch and 0.6 inch row spacing. Using a socket allows IC installation and replacement without repeated heat exposure to the component during soldering. Commonly used in computer memory boards, industrial controls, instrumentation, and embedded system designs.

Through-hole solder tails fit standard DIP PCB layouts, making it suitable for both repair work and new board assembly.

Key Features

• Manufacturer: AMP / Amphenol
• 24-pin Dual Inline Package configuration
• Through-hole solder termination
• Standard 0.1 inch (2.54 mm) pin pitch
• Standard 0.6 inch row spacing
• Black molded plastic body
• Designed for ROM, EPROM, EEPROM, logic ICs, and microcontrollers in 24P DIP
• Allows IC replacement without desoldering the chip

Applications

• Vintage computer motherboard repair
• EPROM and ROM development boards
• Industrial control PCB servicing
• Instrumentation circuit repair
• Microcontroller prototyping
• Educational electronics labs
• Serviceable embedded system designs

Frequently Asked Questions

Will this fit any 24-pin DIP chip?

It is designed for standard 24-pin Dual Inline Package ICs with 0.1 inch pin spacing and 0.6 inch row spacing. Confirm your device package dimensions before ordering.

Is this a surface-mount socket?

No. This is a through-hole solder type socket intended for PCB mounting.

Can this be used for 27C series EPROMs?

Yes, provided the device uses a standard 24-pin 0.6 inch DIP package.

Why use a socket instead of soldering the IC directly?

Sockets allow removal and replacement of the IC without applying heat to the device, which is useful for development, programming, and field service.

Is more stock available?

Quantity available reflects current inventory on hand.

AMP and Amphenol built their reputation on reliable interconnects. If you are socketing memory or logic on a board meant to be serviced, this small part keeps future repairs simple.
