Whitey B-14DKM4 Brass Integral-Bonnet Needle Valve - 1/4 in. MNPT, 3000 PSIG, Straight Pattern
Condition

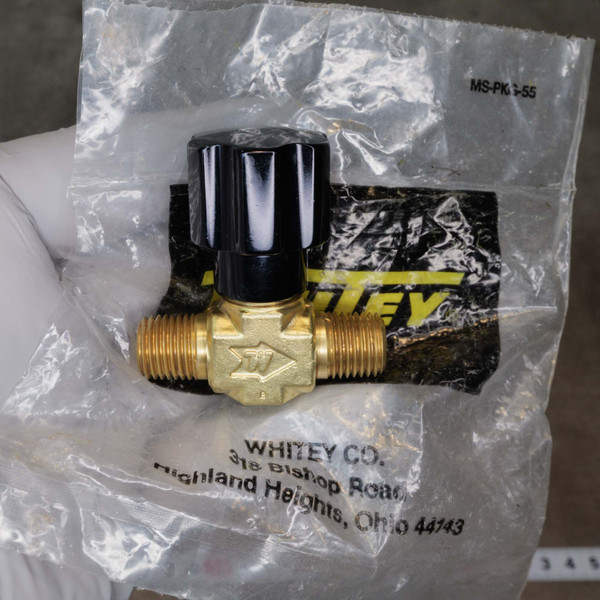

Single unit available. Unused NOS - obtained from a government research facility. Valve body is clean and pristine with no signs of installation or use. Valve action is smooth and stem teeth are in good condition. Backed by our no-hassle guarantee.
Ships same business day from Idaho. Packed carefully.
Product Overview
Whitey B-14DKM4 is a brass integral-bonnet needle valve from the Swagelok D Series. It provides precise manual flow metering and repeatable leak-tight shutoff for liquid or gas lines. The non-rotating stem design protects the PCTFE soft seat from galling and extends service life. Both inlet and outlet ports are 1/4 in. Male NPT, straight pattern.
Key Features
- Body material: Brass
- Connection: 1/4 in. Male NPT x 1/4 in. Male NPT, straight pattern
- Stem type: Non-rotating - reduces seat galling and extends seat life
- Stem tip material: PCTFE (soft seat)
- Max pressure: 3000 PSIG (206 bar) at 100°F (37°C)
- Max temperature: 200°F (93°C)
- Flow coefficient (Cv): 0.27
- Orifice size: 0.156 in. (4.0 mm)
- Integral bonnet design - no separate packing gland
Applications
- Analytical instrumentation - gas chromatography and sampling systems
- Chemical processing and pilot plant flow control
- Instrumentation manifolds and test stands
- Gas manifold metering and shutoff
Frequently Asked Questions
What thread type do both ports use?
Both inlet and outlet are 1/4 in. Male NPT. This valve is not compatible with Swagelok tube compression fittings or BSP/ISO threads without adapters.
Is brass suitable for my application?
Brass is appropriate for many hydraulic, pneumatic, and instrumentation applications. It is not recommended for corrosive chemicals or ultra-high purity gas service where stainless steel (SS-14DKM4) or Monel (M-14DKM4) would be required.
What is the temperature limit for this valve?
The PCTFE soft seat limits service to 200°F (93°C). Applications above that temperature require a PEEK or metal-to-metal seat variant.
Is this the straight or angle pattern?
Straight pattern. The angle pattern variant carries an "-A" suffix (B-14DKM4-A), which this unit does not have.
What is included?
One B-14DKM4 needle valve. No installation guide or fittings are included.
Threads are in good visual condition. Verify thread fit before installation, as brass NPT threads can be sensitive to cross-threading.
