Product Overview
Ashcroft Type 1005P Commercial Pressure Gauge - 2.0" Dial, 1/4 NPT Lower Mount, Polycarbonate Case
Condition
Single unit available. Unused NOS sourced from a government research facility. The gauge itself is in excellent condition - clean, with no visible damage. The original box shows wear from long-term storage but the gauge is unaffected. Evaluation: Visual inspection only. Function testing not performed. Backed by our satisfaction guarantee.
Ships same business day from Idaho. Packed carefully.
Product Overview

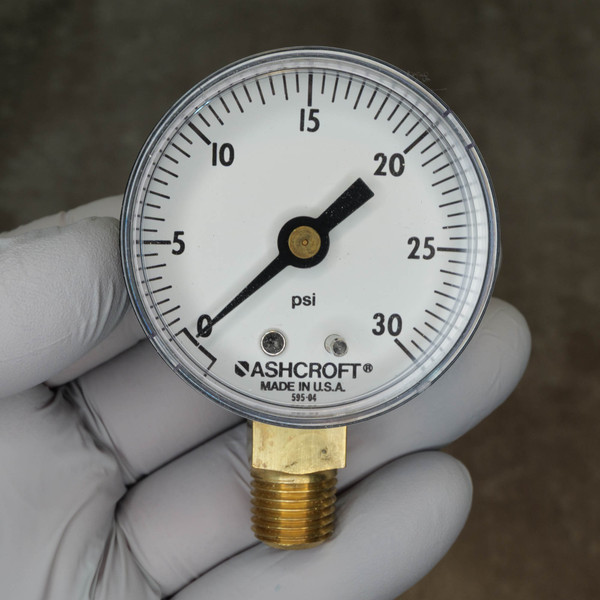

Ashcroft Type 1005P commercial-grade mechanical pressure gauge, model 20W1005PH 02L. Features a 2.0-inch polycarbonate/ABS case, 1/4 NPT lower (bottom) connection, bronze Bourdon tube, and brass socket internals. Accuracy meets ASME B40.100 Grade B (±3-2-3% of span). Dry gauge - not liquid-filled. Pressure range is not confirmed - verify the PSI or Bar range printed on the dial face before purchase.
Key Features
- 2.0-inch dial size
- 1/4 NPT lower (bottom) connection
- Black polycarbonate/ABS case
- Bronze Bourdon tube with brass socket internals
- ASME B40.100 Grade B accuracy (±3-2-3% of span)
- Dry gauge - no liquid fill
- Pressure range: Not confirmed - verify dial face before ordering
Applications
- Air compressor pressure monitoring
- Pneumatic system pressure indication
- Hydronic heating and boiler systems
- Water pumps and plumbing pressure testing
Frequently Asked Questions
What is the pressure range on this gauge?
Not confirmed from the model number alone. The 20W1005PH 02L designation does not encode PSI range. Verify the range printed on the dial face before ordering.
Is this gauge compatible with ammonia or corrosive gases?
No. The bronze Bourdon tube and brass socket internals are not compatible with ammonia or other fluids corrosive to copper alloys. Use only with non-corrosive media such as air, water, or oil.
Is this a liquid-filled gauge?
No. This is a dry gauge. It is not recommended for high-vibration applications without an external dampener. For high-vibration environments, a glycerin-filled gauge is more appropriate.
What connection does this gauge require?
1/4 NPT lower (bottom) mount. The port on your system must be a 1/4 NPT female thread. This gauge is not compatible with BSP or other thread forms without an adapter.
The pressure range must be confirmed from the dial face before installation. All other specs are confirmed for this model.
